Specifications
- Bar: ASTM B160, ASME SB160

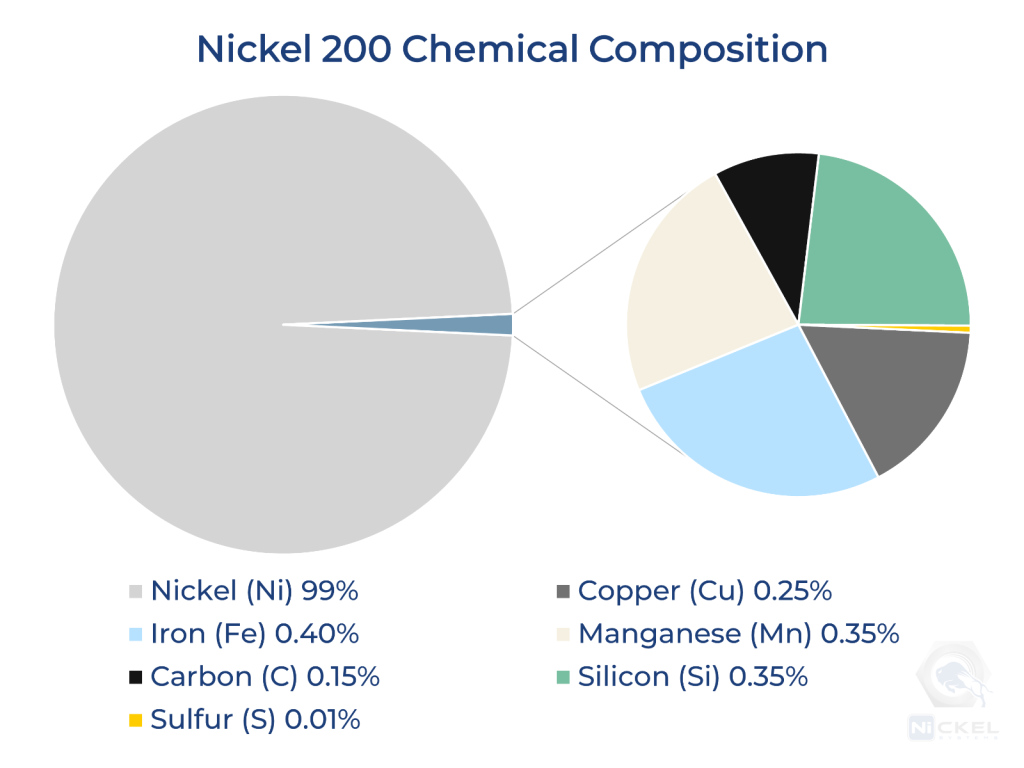

Nickel 200 is commercially pure nickel. Nickel 201 (UNS N02201) is the low carbon, .02 max, version. Often, a heat lot is certified to both. Nickel 200 is magnetic except at extremely elevated temperatures. It is resistant to most acids and is used in the production of caustics. Nickel 200 is used in the food processing industry.
If your question isn’t answered below, download the technical data sheet here.
| Density | lb/in3 | 0.321 |
|---|---|---|
| g/cm3 | 8.89 | |
| Melting Range | °F | 2615 – 2635 |
| °C | 1435 – 1446 | |
| Specific Heat | Btu/lb•°F | 0.109 |
| J/kg•°C | 456 | |
| Curie Temperature | °F | 680 |
| °C | 360 |
| Temperature | Coefficient of Expansiona | Thermal Conductivity | Electrical Resistivity | ||||
| °F | °C | 10-6 in/in•°F | μm/m•°C | Btu•in/ft2•h•°F | W/m•°C | ohm•circ mil/ft | μΩ•m |
| -423 | -200 | 4.7 | 10.1 | — | — | — | — |
| -300 | -100 | 5.8 | 11.3 | — | 75.5 | 16 | 0.050 |
| -200 | 20 | 6.2 | — | 533 | 70.3 | 26 | 0.096 |
| -100 | 100 | 6.3 | 13.3 | 516 | 66.5 | 36 | 0.130 |
| 0 | 200 | — | 13.9 | 499 | 61.6 | 48 | 0.185 |
| 70 | 300 | — | 14.2 | 487 | 56.8 | 58 | 0.260 |
| 200 | 400 | 7.4 | 14.8 | 463 | 55.4 | 76 | 0.330 |
| 400 | 500 | 7.7 | 15.3 | 426 | 57.6 | 113 | 0.365 |
| 600 | 600 | 8.0 | 15.5 | 389 | 59.7 | 164 | 0.400 |
| 800 | 700 | 8.3 | 15.8 | 389 | 61.8 | 204 | 0.430 |
| 1000 | 800 | 8.5 | 16.2 | 404 | 64.0 | 228 | 0.460 |
| 1200 | 900 | 8.7 | 16.6 | 421 | 66.1 | 248 | 0.485 |
| 1400 | 1000 | 8.9 | 16.9 | 437 | 68.2 | 269 | 0.510 |
| 1600 | 1100 | 9.1 | 17.1 | 455 | — | 289 | 0.540 |
| 1800 | — | 9.3 | — | 472 | — | 306 | — |
| 2000 | — | 9.5 | — | — | — | 323 | — |
aMean coefficient of linear expansion between 70°F (21°C) and temperature shown.
| Temp. | Young’s Modulus | Shear Modulus | Poisson’s Ratio | Temp. | Young’s Modulus | Shear Modulus | Poisson’s Ratio |
| °F | 103 ksi | 103 ksi | °C | GPa | GPa | ||
| 78 | 29.7 | 11.55 | 0.29 | 26 | 205 | 79.6 | 0.29 |
| 200 | 29.1 | 11.30 | 0.29 | 100 | 200 | 77.9 | 0.28 |
| 400 | 28.3 | 11.00 | 0.29 | 200 | 195 | 75.8 | 0.29 |
| 600 | 27.4 | 10.66 | 0.29 | 300 | 190 | 73.8 | 0.29 |
| 800 | 26.4 | 10.27 | 0.29 | 400 | 183 | 71.4 | 0.28 |
| 1000 | 25.2 | 9.80 | 0.29 | 500 | 177 | 69.0 | 0.28 |
| Form | Tensile Strength | Yield Strength (0.2% Offset) | Elongation in 2″, % | Hardness | |||
| ksi | MPa | ksi | MPa | Brinell (3000 kg) | Rockwell B | ||
| Rod and Bar | |||||||
| Hot- Finished | 60-85 | 415-585 | 15-45 | 105-310 | 55-35 | 90- 50 | 45-80 |
| Cold-Drawn | 65-100 | 450-760 | 40-100 | 275-690 | 35-10 | 140-230 | 75-98 |
| Cold-Drawn, Annealed or Hot-Finished, Annealed | 55-75 | 380-520 | 15-30 | 105-210 | 55-40 | 90-120 | 45-70 |
| Plate | |||||||
| Hot-Rolled | 55-100 | 380-690 | 20-80 | 140-550 | 55-35 | 100-150 | 55-80 |
| Hot-Rolled, Annealed | 55-80 | 380-550 | 15-40 | 105 – 275 | 60-40 | 90-140 | 45-75 |
| Sheet | |||||||
| Hard | 90-115 | 620-795 | 70 -105 | 480-725 | 15-2 | — | 90 min. |
| Annealed | 55-75 | 380-520 | 15-30 | 105-210 | 55-40 | — | 70 max. |
| Strip | |||||||
| Spring | 90-130 | 620-895 | 70-115 | 480-795 | 15-2 | — | 95 min. |
| Annealed | 55-75 | 380-520 | 15-30 | 105-210 | 55-40 | — | 64 max. |
| Tubing | |||||||
| Stress-Relieved | 65-110 | 450-760 | 40-90 | 275-620 | 35-15 | — | 75-98 |
| Annealed | 55-75 | 380-520 | 12-30 | 85-210 | 60-40 | — | 70 max. |
| Condenser and Evaporator Tubing | |||||||
| Annealed | 55-75 | 380-520 | 15 – 30 | 105-210 | 60-40 | — | 65 max. |
| Stress-Relieved | 65-110 | 450-760 | 40-90 | 275-620 | 35-20 | — | 75-98 |
| Wire, Cold-Drawn | |||||||
| Annealed | 55-85 | 380-580 | 15-50 | 105-345 | 50-30 | — | — |
| No. 1 Temper | 70-95 | 485-655 | 40-75 | 275-520 | 40-20 | — | — |
| Spring Temper | 125-145 | 860-1000 | 105-135 | 725-930 | 15-2 | — | — |

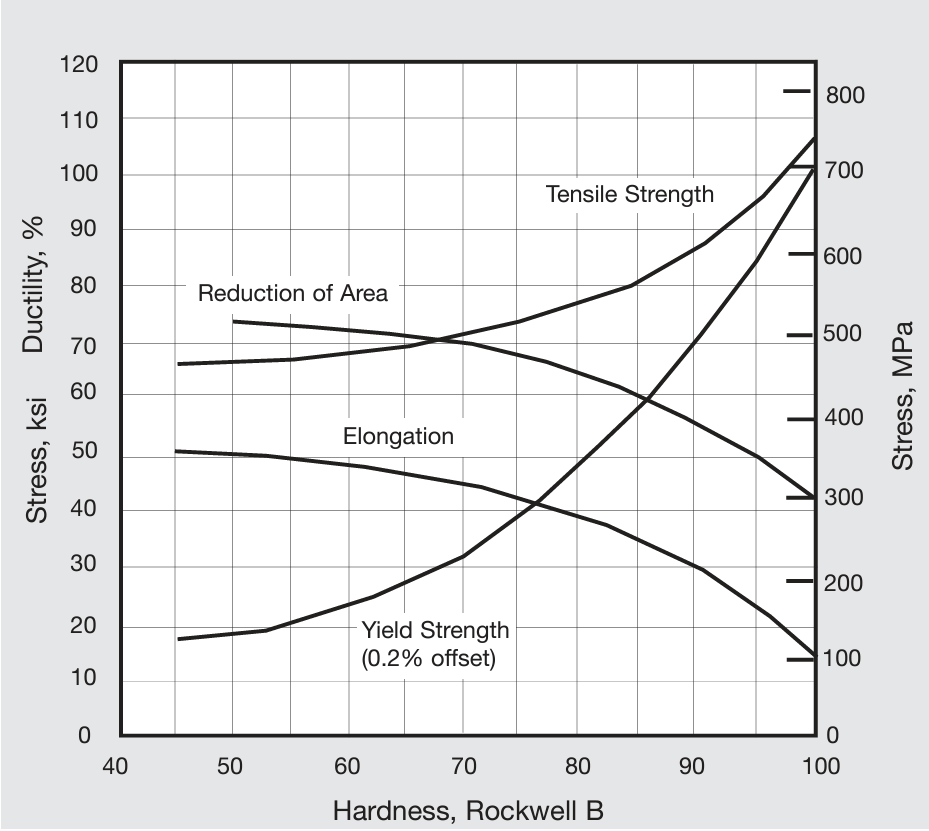

| Nickel 200 Rod
|

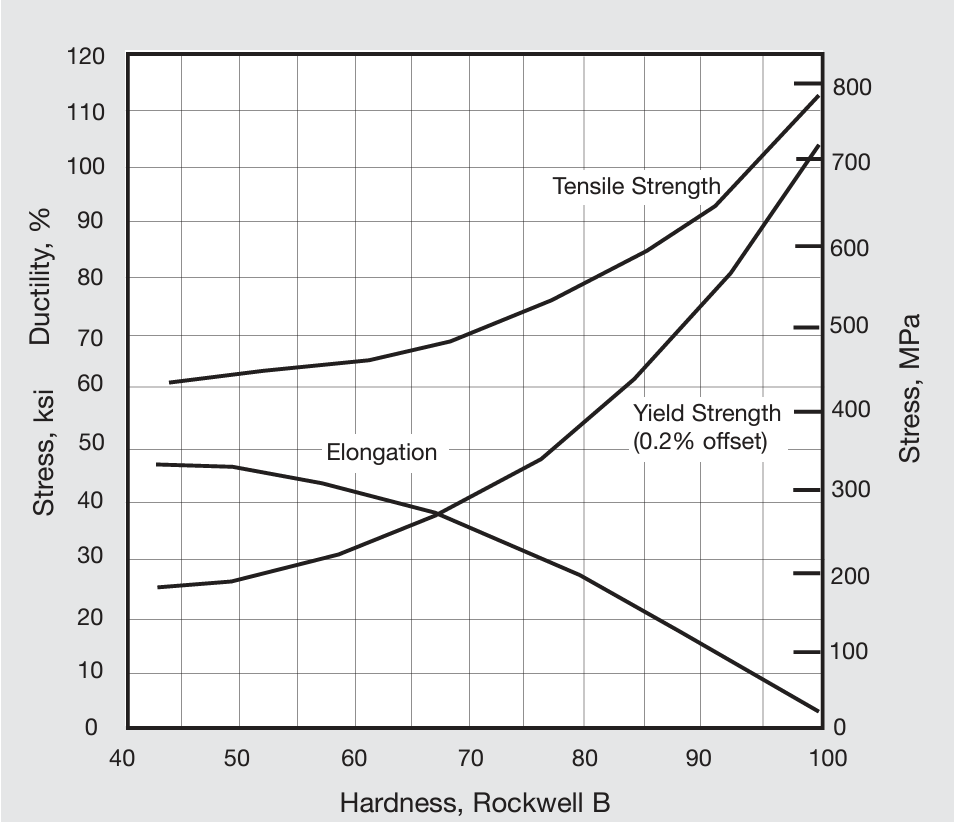

Nickel 200 Sheet and Strip
|
Torsional Properties of Cold-Drawn Nickel 200 Rod (1-inch diameter)
| Breaking Strength, ksi (MPa) | Twist, °/in (°/mm) |
| 81.0 (558) | 341 (13.4) |
Shear Strength of Nickel 200 Bar
| Temper | Shear Strength (Double Shear) | Tensile Strength | Hardness, Rockwell B | ||
| ksi | MPa | ksi | MPa | ||
| Annealed | 52.0 | 359 | 68.0 | 469 | 46 |
| Half-Hard | 58.0 | 400 | 79.0 | 545 | 90 |
| Full-Hard | 75.0 | 517 | 121.0 | 834 | 100 |
| Property | Temper | |||
| Soft | 1 B&S No.b | |||
| ksi | MPa | ksi | MPa | |
| Shear Strength | ||||
| Room Temperature | 41.0 | 283 | 45.0 | 310 |
| 1/2 hr at temperature | ||||
| 600°F (315°C) | 39.5 | 272 | 42.5 | 293 |
| 800°F (430°C) | 34.0 | 234 | 37.0 | 255 |
| 1000°F (540°C) | 26.5 | 183 | 28.5 | 197 |
| 24 hr at temperature | ||||
| 800°F (430°C) | 35.5 | 245 | 36.5 | 252 |
| 1000°F (540°C) | 27.0 | 186 | 29.0 | 200 |
| Yield Strength (0.2% offset) | 46.5 | 321 | 67.5 | 465 |
| Tensile Strength | 65.0 | 448 | 73.5 | 507 |
| Elongation in 2 in. (51 mm), % | 36 | 12 | ||
aShear properties determined from the load required to produce a double shearing of a 0.125-in. (3.175-mm) diameter by 1-in. (25-mm) wire specimen inserted in a tongue-and-groove jig with 0.002-in. (0.051-mm) clearance. bCorresponds to the approximate strength of the shank of a headed rivet.
| Property | Hot-Rolled | Cold-Drawn 24% | Annealed | |||
| ksi | MPa | ksi | MPa | ksi | MPa | |
| Compressive Data | ||||||
| Yield Strength (0.2% offset) | 23.0 | 159 | 58.0 | 400 | 26.0 | 179 |
| Tensile Data | ||||||
| Breaking Strength | 710 | 490 | 87.0 | 600 | 73.0 | 503 |
| Yield Strength (0.2% offset) | 24.0 | 165 | 62.0 | 427 | 27.0 | 186 |
| Hardness | ||||||
| Brinell (3000 kg) | 107 | 177 | 109 | |||
Bearing Strength of Nickel 200 Sheeta
| Condition | Tensile Strength | Yield Strength (0.2% offset) | Elongation in 2″, % | Bearing Strength | Ratio of Bearing to | ||||||
| Ultimate Strength (Tearing Out) | Yield Strengthb | Tensile Strength | Yield Strength | ||||||||
| ksi | MPa | ksi | MPa | ksi | MPa | ksi | MPa | ||||
| Soft | 59.6 | 411 | 28.7 | 198 | 39.0 | 125.5 | 865 | 50.3 | 346 | 2.11 | 1.75 |
| Half-Hard | 67.6 | 470 | 55.5 | 383 | 30.0 | 151.5 | 1045 | 97.9 | 675 | 2.24 | 1.77 |
| Hard | 99.0 | 683 | 88.9 | 613 | 18.0 | 179.0 | 1234 | 133.5 | 920 | 1.81 | 1.50 |
a0.062 x 1.25 x 2.5-in. (1.57 x 31.8 x 63.5-mm) material having a 3/16-in. (4.8-mm) hole at a hole-center-to-edge distance of 3/8 in. (9.6 mm). b2% enlargement of hole diameter in sheet.
| Condition | Hardness | Izod | Charpy V | Charpy Torsion | Charpy Tension | |||||||||
| Brinell (3000 kg) | ft•lb | J | ft•lb/in.3 | J/mm2 | ft•lb | J | ft•lb | J | Twist, ° | ft•lba | J | Elong. in 3.54″, % | Reduct. of Area, % | |
| Hot-Rolled | 107 | 120 | 163 | 932 | 1.95 | 200 | 271 | 29 | 39 | 103½ | 98 | 132 | 20.0 | 83.1 |
| Cold-Drawn, 24% Reduction, Stress-Relieved | 177 | 120 | 163 | 966 | 2.03 | 204 | 277 | 35 | 47 | 102 | 88 | 119 | 19.5 | 71.2 |
| Cold-Drawn, Annealed at 1350°F (732°C)/3 hr | 109 | 120 | 163 | 980 | 2.06 | 228 | 309 | 29 | 39 | 103 | 113 | 153 | 33.0 | 75.1 |
aSpecimens fractured completely.
Fatigue and Corrosion Fatigue of Nickel 200 Rod
| No. of Cycles | Stress to Cause Fracture | |||||||||||
| Cold-Drawn Rod in | Annealed Rod in | |||||||||||
| Air | Fresh Water | Salt Watera | Air | Fresh Water | Salt Watera | |||||||
| ksi | MPa | ksi | MPa | ksi | MPa | ksi | MPa | ksi | MPa | ksi | MPa | |
| 104 | 109.0 | 752 | 110.0 | 758 | — | — | — | — | — | — | — | — |
| 105 | 84.0 | 579 | 80.0 | 552 | — | — | 52.0 | 359 | 52.0 | 359 | 52.0 | 359 |
| 106 | 63.0 | 434 | 56.0 | 386 | 54.0 | 372 | 40.0 | 276 | 39.0 | 269 | 37.0 | 255 |
| 107 | 52.0 | 359 | 34.0 | 234 | 30.0 | 207 | 34.0 | 342 | 27.0 | 186 | 24.0 | 165 |
| 108 | 50.0 | 345 | 26.0 | 179 | 23.0 | 159 | 33.0 | 228 | 23.0 | 159 | 21.0 | 145 |
| 109 | 50.0 | 345 | 24.0 | 165 | 21.0 | 145 | 33.0 | 228 | 23.0 | 159 | 21.0 | 145 |
aSevern River water (approximately one third the salinity of sea water).

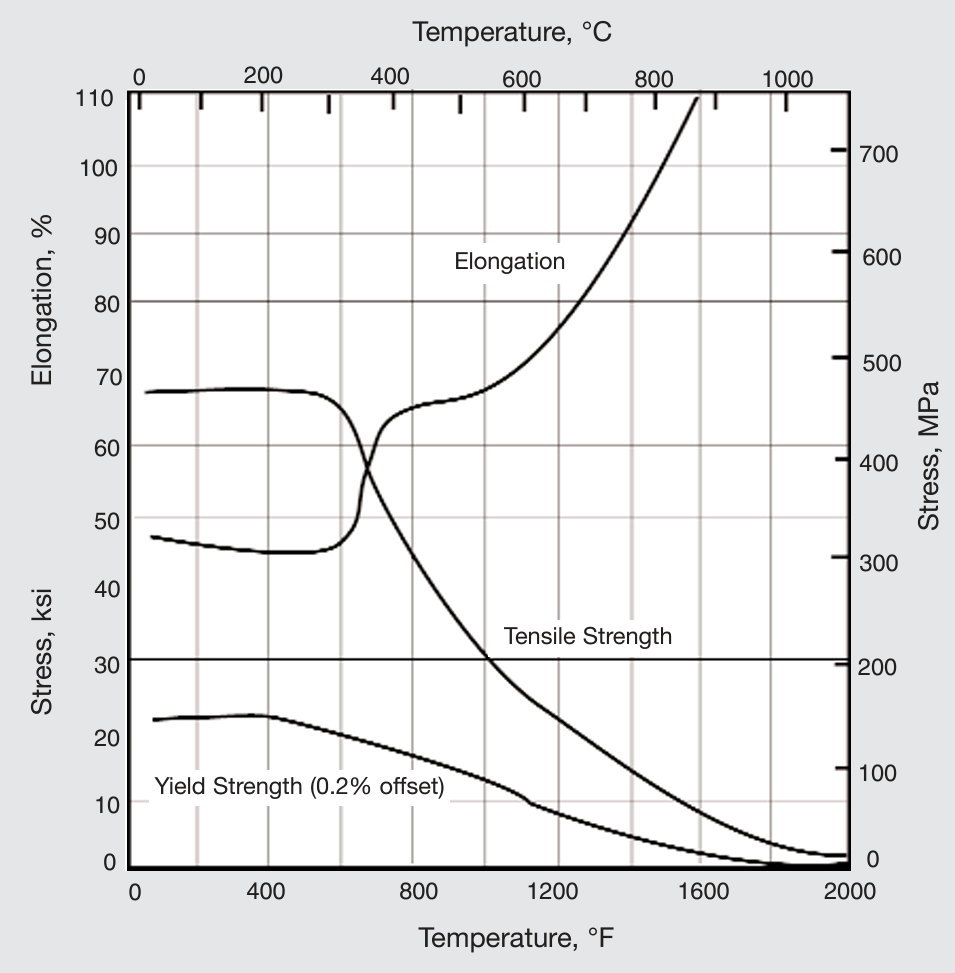

| High-temperature tensile properties of annealed Nickel 200.
|

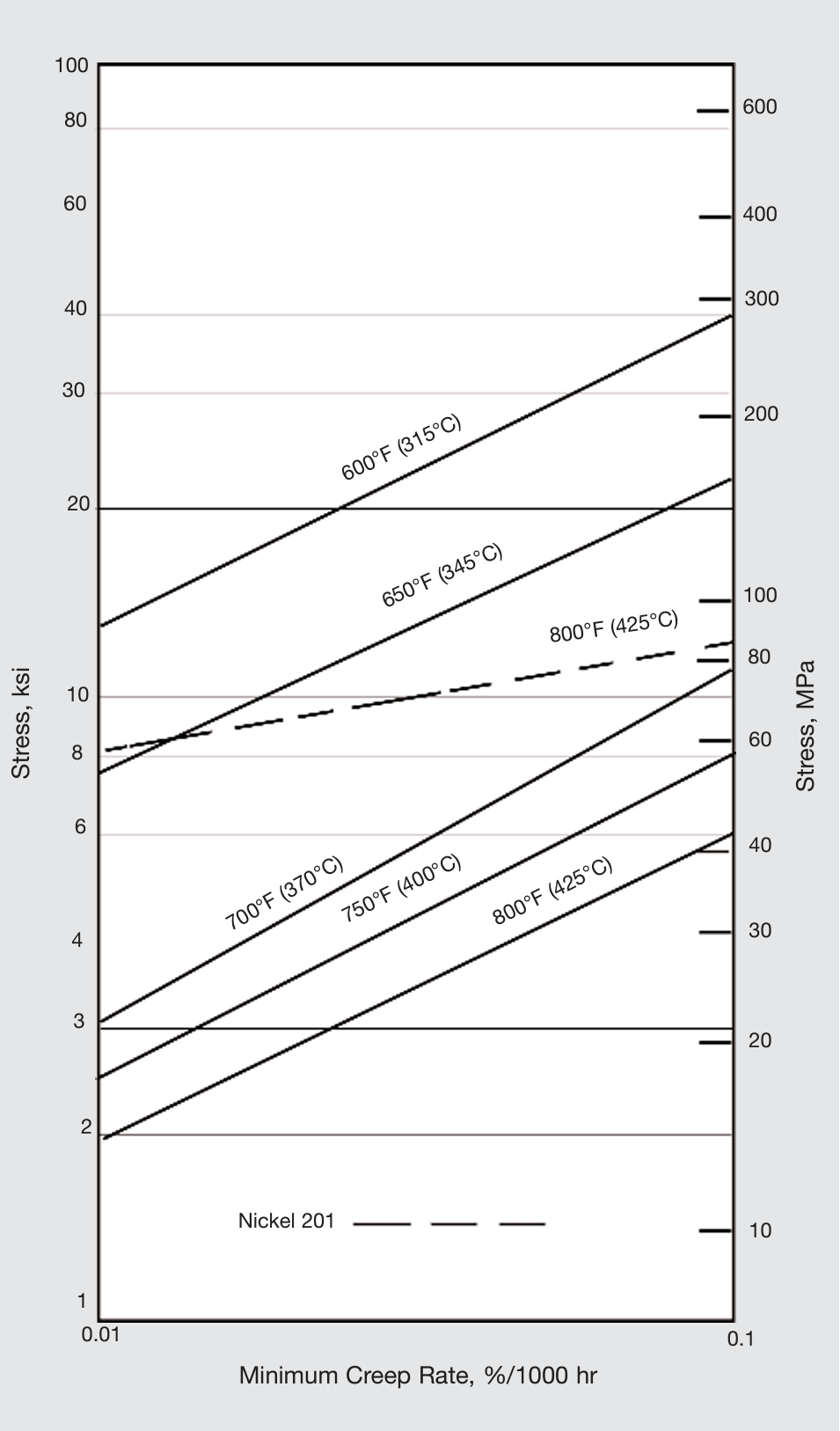

High-temperature creep strength of annealed Nickel 200.
|

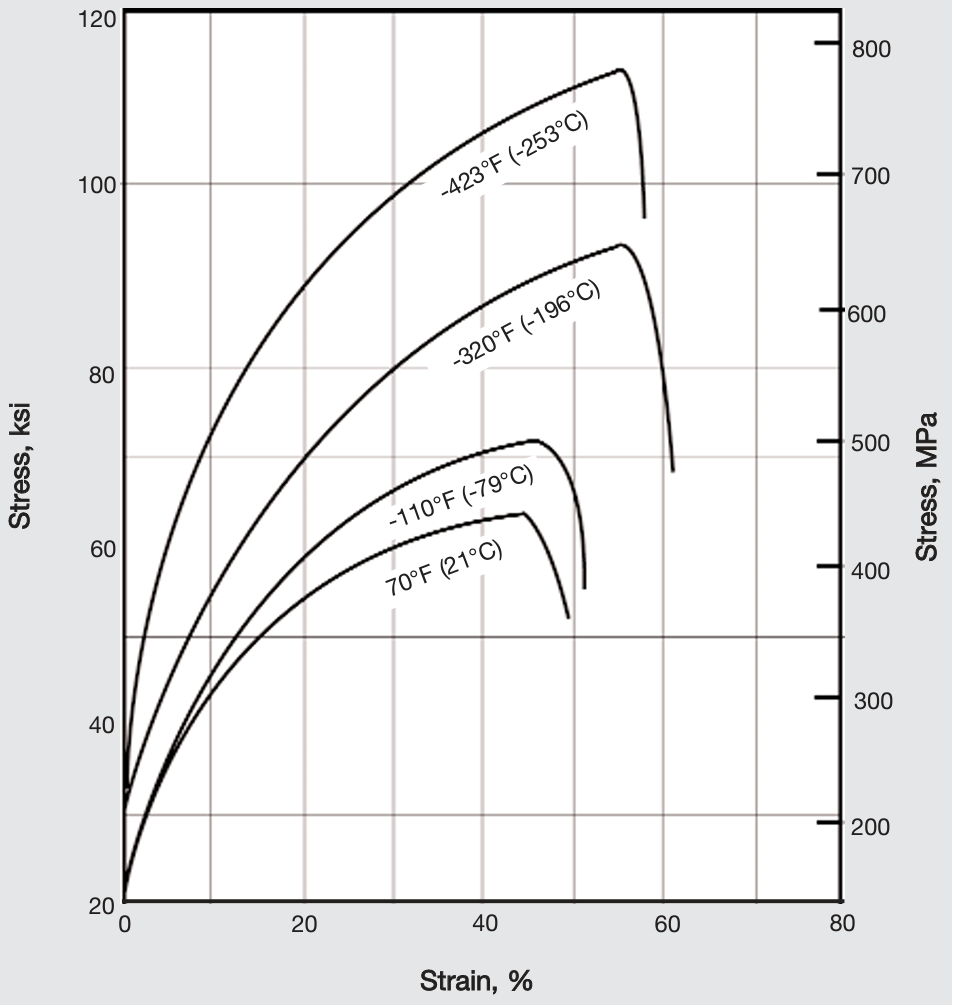

| Stress-strain diagram for annealed 0.750-in. (19-mm) Nickel 200 bar at low temperatures.
|

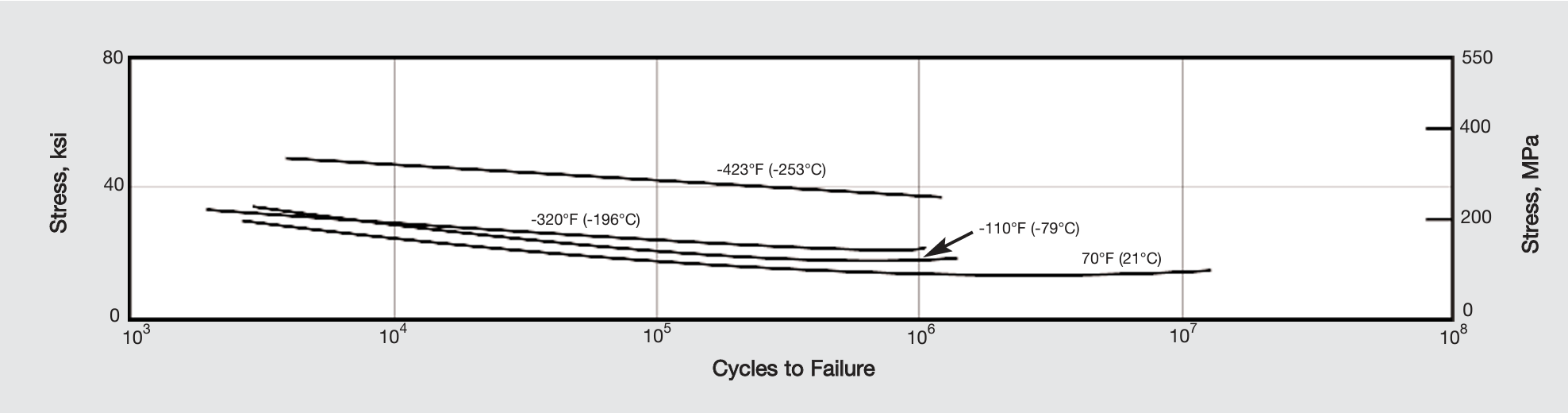

Low-temperature fatigue strength of annealed Nickel 200 sheet, 0.021 in. (0.53 mm) thick.
Tested in completely reversed bending; tensile strength of material, 61.6 ksi (425 MPa) |

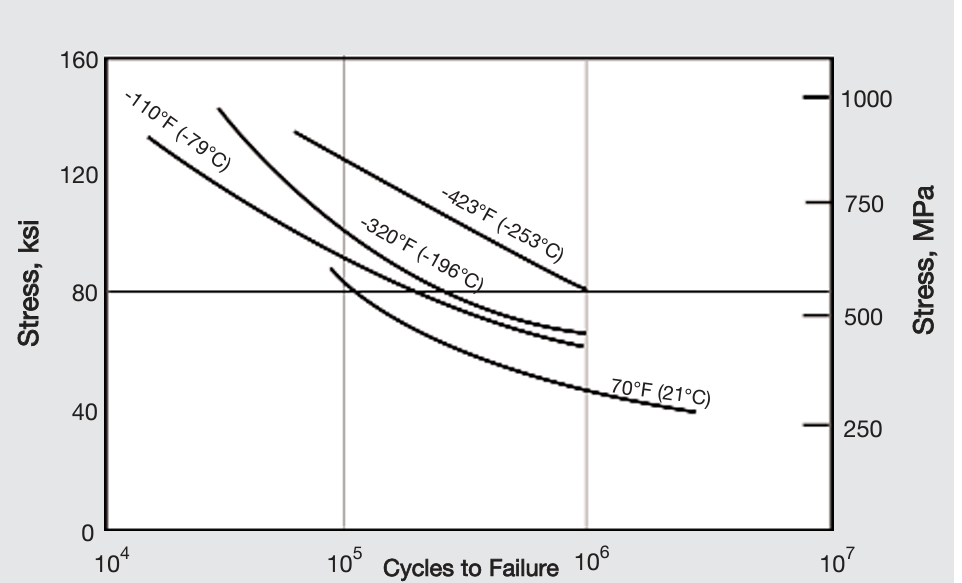

| Low-temperature notch-fatigue strength of annealed Nickel 200 sheet, 0.021 in. (0.53 mm) thick
Tested in completely reversed bending; tensile strength of material, 61.6 ksi (425 MPa); notch concentration factor (Kt ), 3.0. |
|

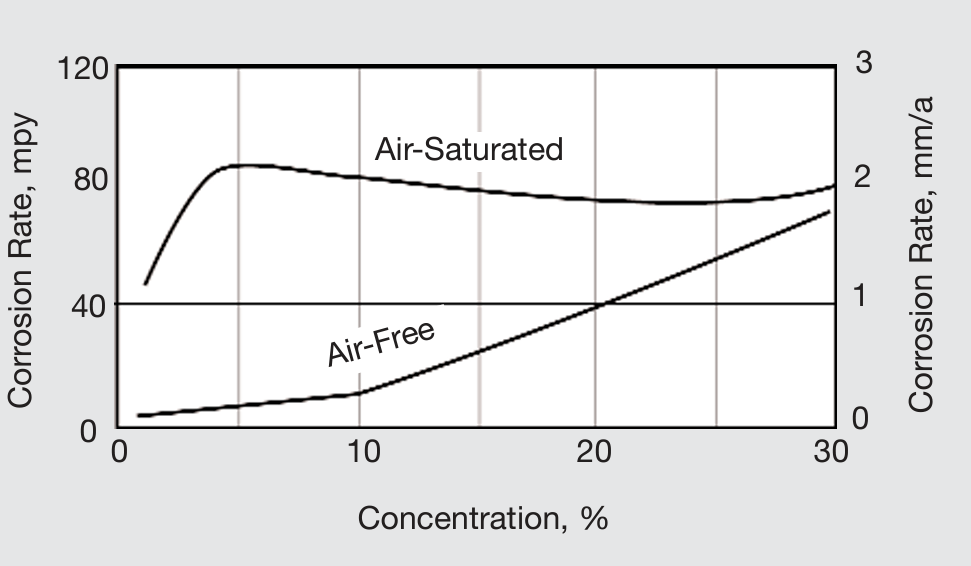

| Site | Corrosion Rate | |
| mpy | mm/a | |
| Heavy Railroad – Industrial (Altoona, PA) | 0.222 | 0.0056 |
| Urban – Industrial (New York City, NY) | 0.144 | 0.0036 |
| Rural (State College, PA) | 0.0085 | 0.0002 |
| Semi-arid – Rural (Phoenix, AZ) | 0.0015 | 0.00004 |
| Site | Weight Loss, gram | Corrosion Rate | |
| mpy | mm/a | ||
| East-Coast Marine (Kure Beach, NC | 0.23 | 0.012 | 0.0003 |
| Industrial (Newark, NJ) | 1.50 | 0.079 | 0.0020 |
| West-Coast Marine (Point Reyes, CA) | 0.13 | 0.007 | 0.0002 |
| Rural (State College, PA) | 0.22 | 0.012 | 0.0003 |
Nickel 200 may be annealed over a wide range of temperatures above its recrystallization temperature. For heavily coldworked material, temperature may be as low as 1100° to 1200°F (595° to 650°C), but from a practical viewpoint, the range is usually about 1300 to 1700°F (705° to 925°C).
| Shielded Metal-Arc Welding | Nickel Welding Electrode 141 |
| Gas Tungsten-Arc & Gas-Metal-Arc Welding | Nickel Filler Metal 61 |
Nickel 200 may also be joined to steel with Nickel Welding Electrode 141 and Nickel Filler Metal 61.
| Weld Time, cycles | Shear Strength | |
| lb | N | |
| 2 | 1125 | 5004 |
| 3 | 1128 | 5017 |
| 4 | 1170 | 5204 |
| 5 | 1280 | 5693 |
