Titanium Gr7

Titanium Gr7

Titanium (Ti) - 99.125 Balance
Other

Key

Nickel
Copper
Chromium
Aluminum
Molybdenum
Iron
Titanium
Manganese
Cobalt
Other
  • Iron (Fe) 0.3 Max
  • Carbon (C) 0.08 Max
  • Titanium (Ti) 99.125
  • Palladium (Pd) 0.2
  • Hydrogen (H) 0.015 Max
  • Oxygen (O) 0.25 Max
  • Nitrogen (N) 0.03 Max

UNS R52400

Titanium Gr7 is a high-performance titanium alloy known for its improved corrosion resistance, especially in reducing environments. Nickel Systems is a leading supplier of Titanium Grade 7 fasteners to companies in need of reliable components at affordable prices. We offer prompt delivery and individualized attention to ensure you are getting the ideal products for your specific applications.

Request a Quote



Summary

  • Environment:
    Moderately Corrosive: Acids & Chemicals
  • Temperature Limit:
    1,000 °F / 538 °C
  • Ultimate Tensile (Typical):
    50 ksi / 345 mpa

Specifications & Technical Data

If your question isn’t answered below, download the complete technical data sheet here.

Specifications

  • Plate, Sheet & Strip: ASTM B575, ASME SB575
  • Rod & Bar: ASTM B574, ASME SB574

Physical Properties

Density
0.163 lb/in3
Modulus
15 x 106 psi
Beta Transus (± 25°F)
1635 – 1735°F
Thermal Conductivity
13 – 10 Btu/ft・h・°F
Thermal Expansion (32 – 600°F)
5.1 x 10-6/°F
Melt Temperature
~3,000°F

Mechanical Properties

Tensile Strength Yield Strength Elongation in 2″
ksi MPa ksi MPa %
min. min. max. min. max. min.
50 345 40 65 275 450 20

Mill Annealed Condition

Overview

Titanium Gr7’s palladium addition gives it superior corrosion resistance than Grade 2 titanium, especially in highly acidic and cryogenic environments.

What Is Titanium Gr7?

Titanium Gr7 (UNS R52400), often referred to as Ti-0.15Pd, is a commercially pure titanium alloy modified by a small addition of palladium (approximately 0.12% – 0.25%). This small addition significantly boosts its resistance to pitting crevice corrosion and stress corrosion cracking, especially in reducing acids and chloride-rich chemical environments.

This alloy maintains the same excellent weldability and moderate strength as Titanium Grade 2 but surpasses it substantially in terms of chemical resistance, making it ideal for highly corrosive and specialized applications.

Titanium Gr7 Composition

Titanium Gr7 is composed of the following elements:

  • Titanium (Ti): Balance
  • Palladium (Pd): 0.12% – 0.25%
  • Iron (Fe): 0.3%
  • Oxygen (O): 0.25%
  • Carbon (C): 0.08%
  • Nitrogen (N): 0.03%
  • Hydrogen (H): 0.015%
  • Other: Total ≤ 0.4%

Please note that our composition data follows ASTM material specifications for Alloy UNS R52400.

Other Names for Titanium Gr7

Titanium Gr7 is also known as:

  • Grade 7 Ti-0.15Pd Alloy
  • UNS R52400
  • Titanium grade 7
  • Ti Grade 7
  • Ti-0.15Pd alloy
  • ASTM grade 7 titanium
  • W-Nr. 3.7235

Titanium Gr7 Vs. Titanium Grade 2

Ti Grade 7 and Titanium Gr2 share similar physical and mechanical properties. However, Grade 7 offers enhanced corrosion resistance due to its palladium content. This makes Grade 7 the preferred choice in applications involving aggressive chemical exposures or seawater.

Titanium Gr7 Applications

Ti-0.15Pd alloy is often used in:

  • Chemical processing: Components in reactors, heat exchangers and piping systems handling reducing acids
  • Power generation: Fasteners and structural elements in high-pressure, high-temperature environments
  • Marine and desalination: Parts exposed to seawater and chlorides like desalination systems, heat exchangers, brine evaporators and condenser tubing
  • Air pollution control: Equipment that handles corrosive gases and liquids

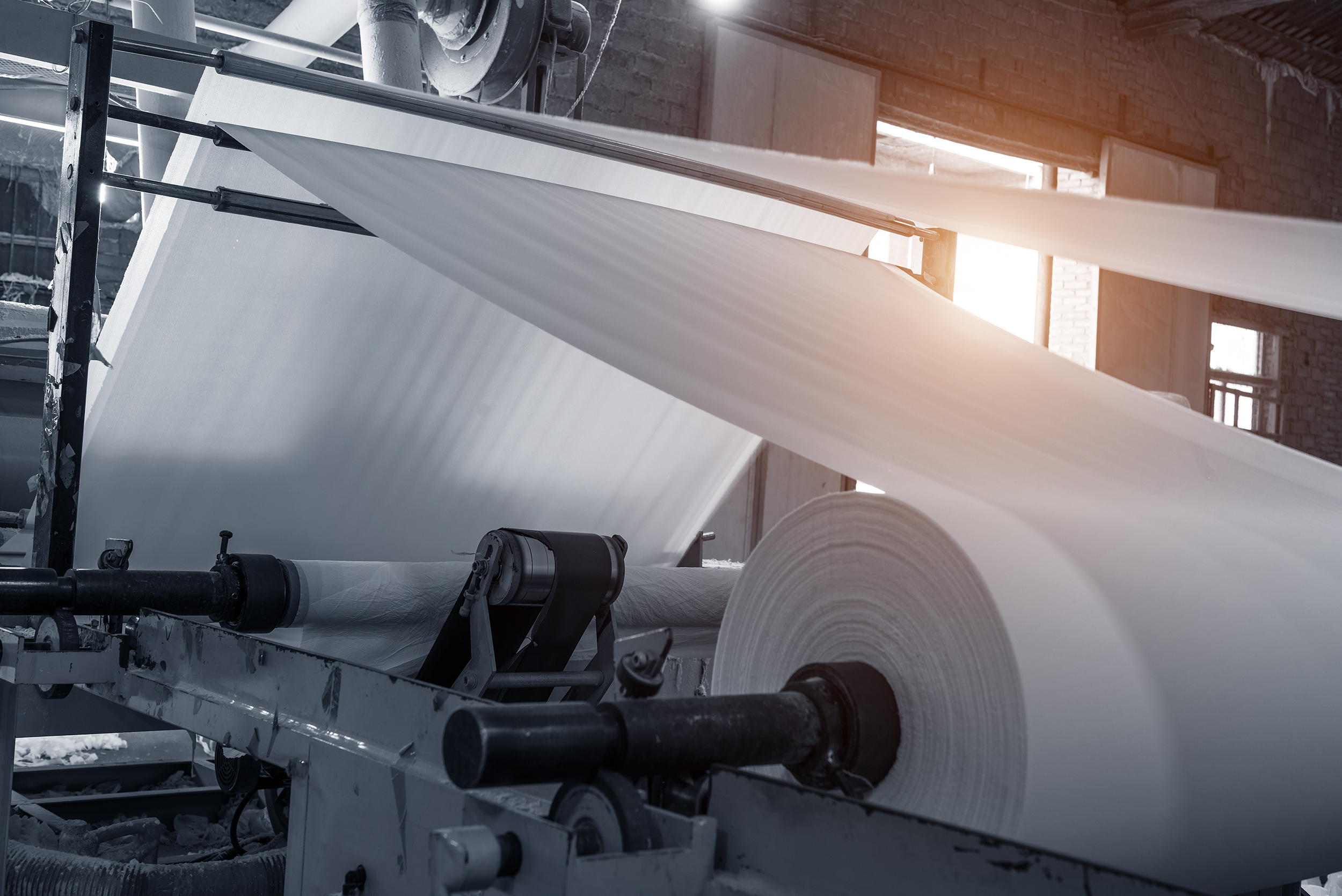

  • Pulp and paper: Components used in bleaching and washing processes



Titanium Gr7 Fasteners

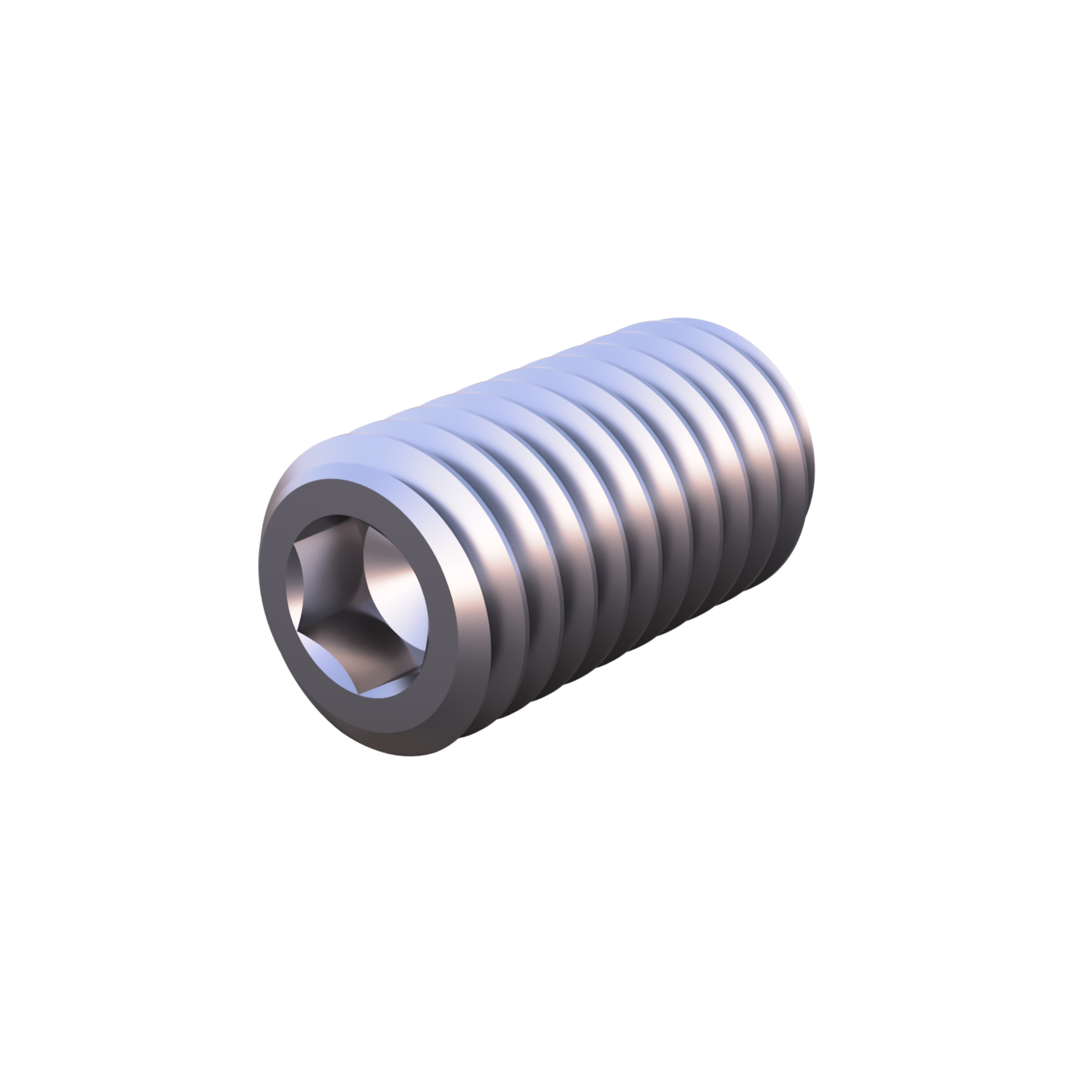

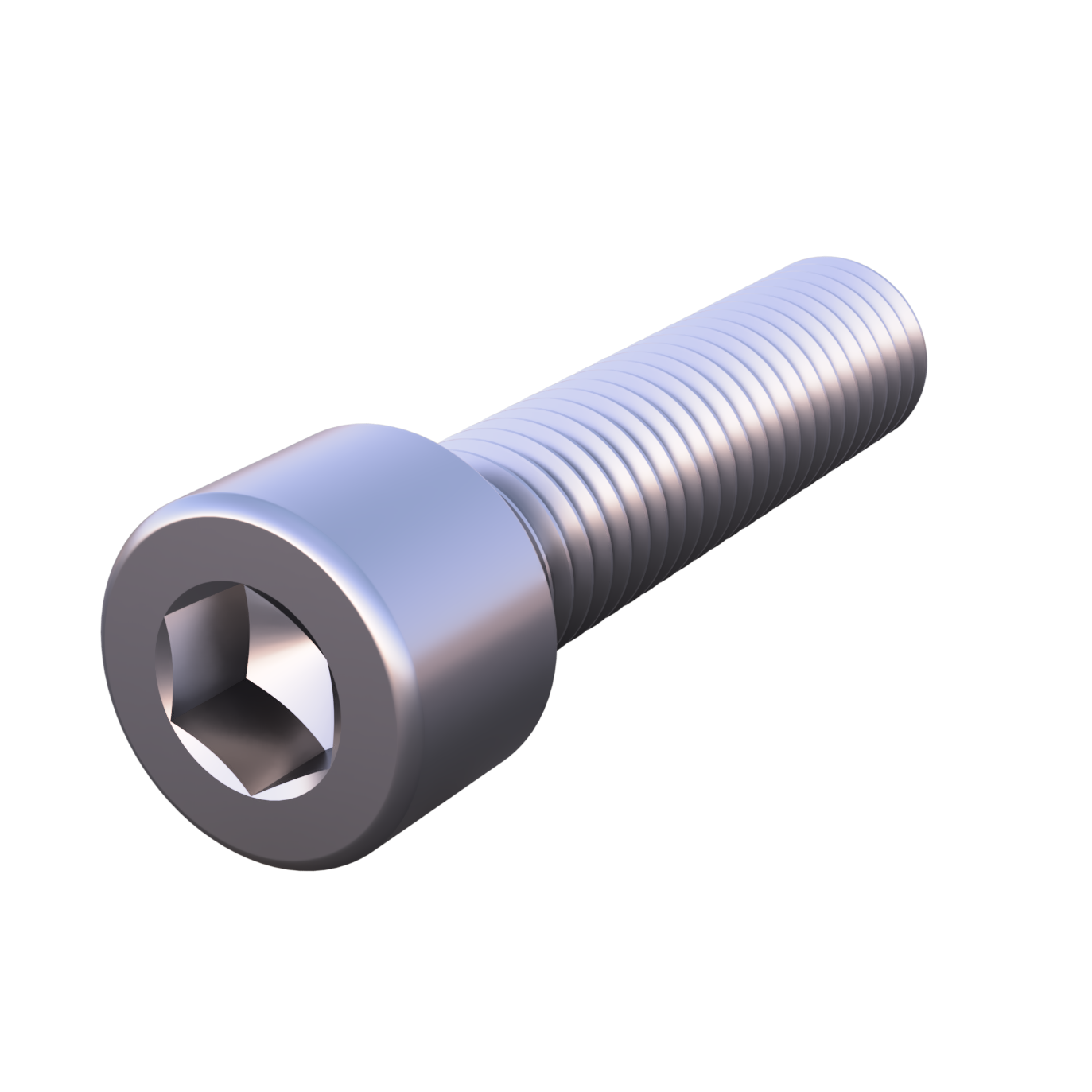

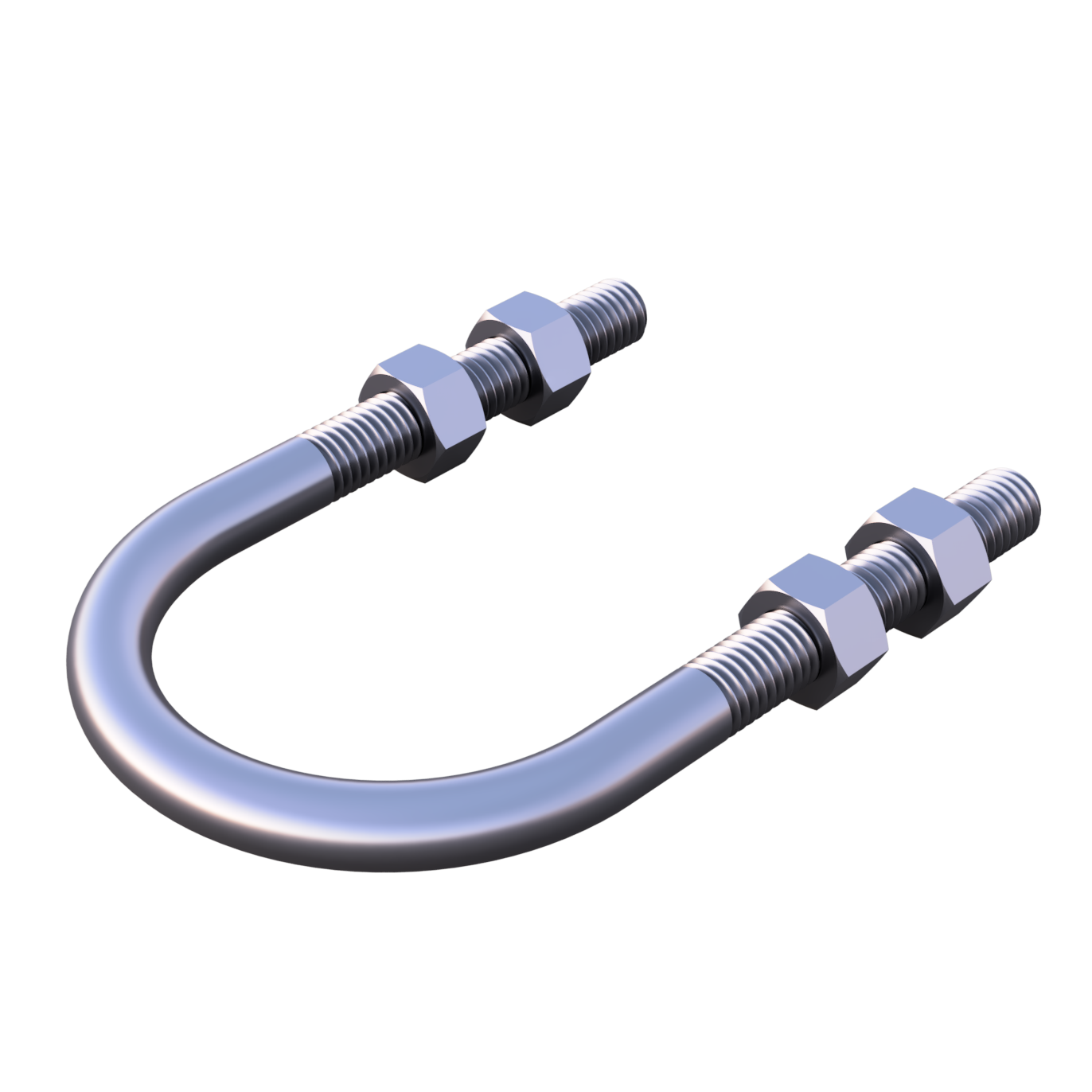

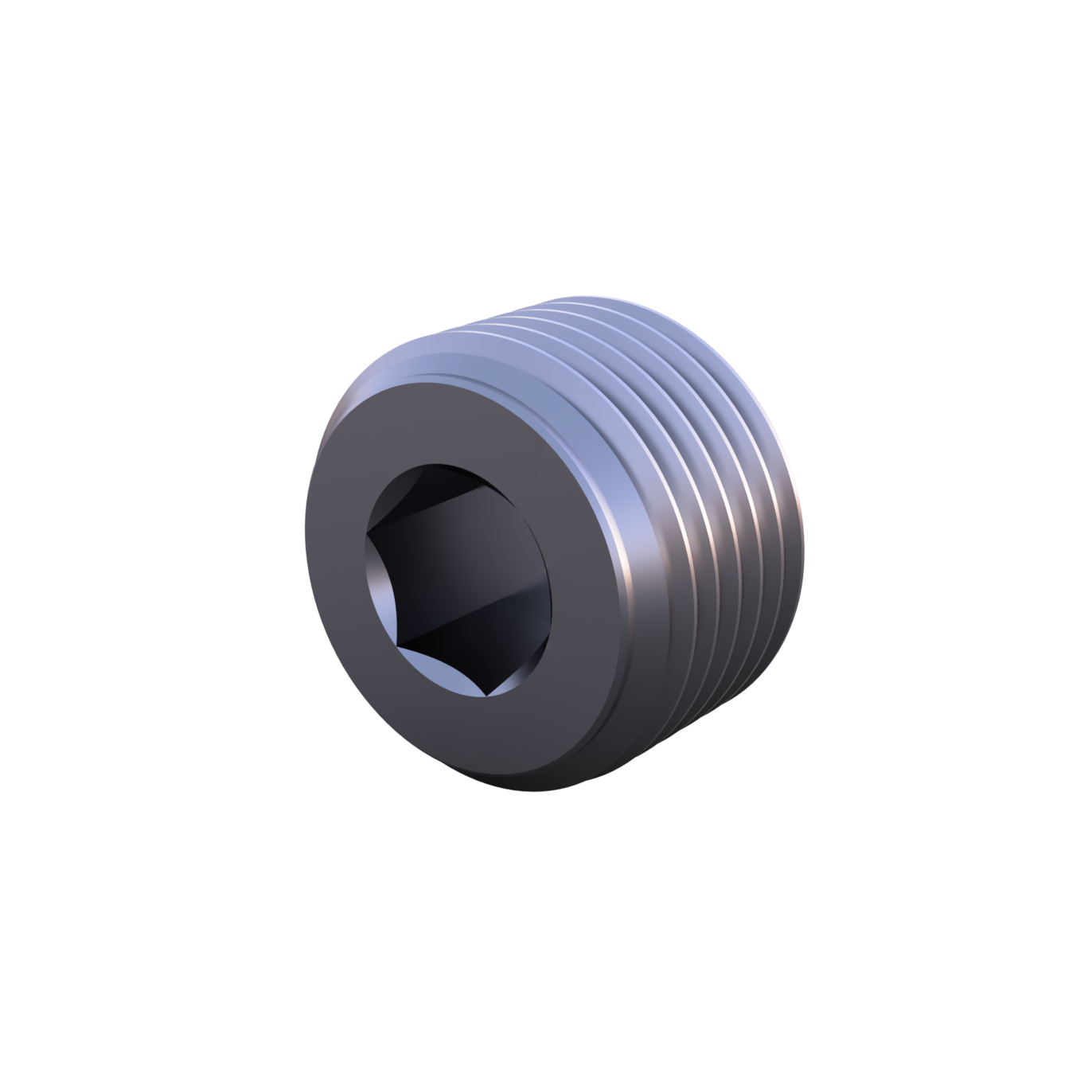

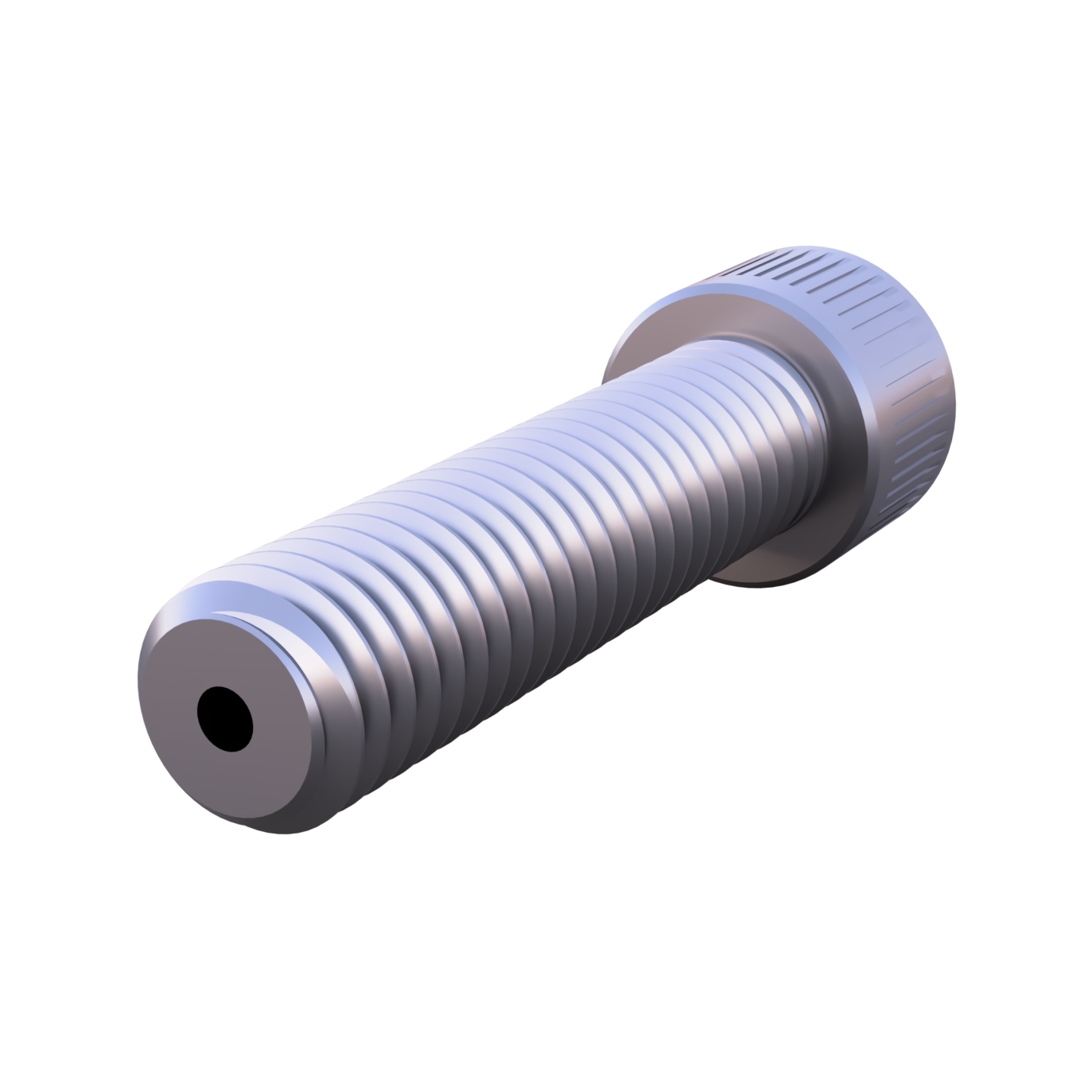

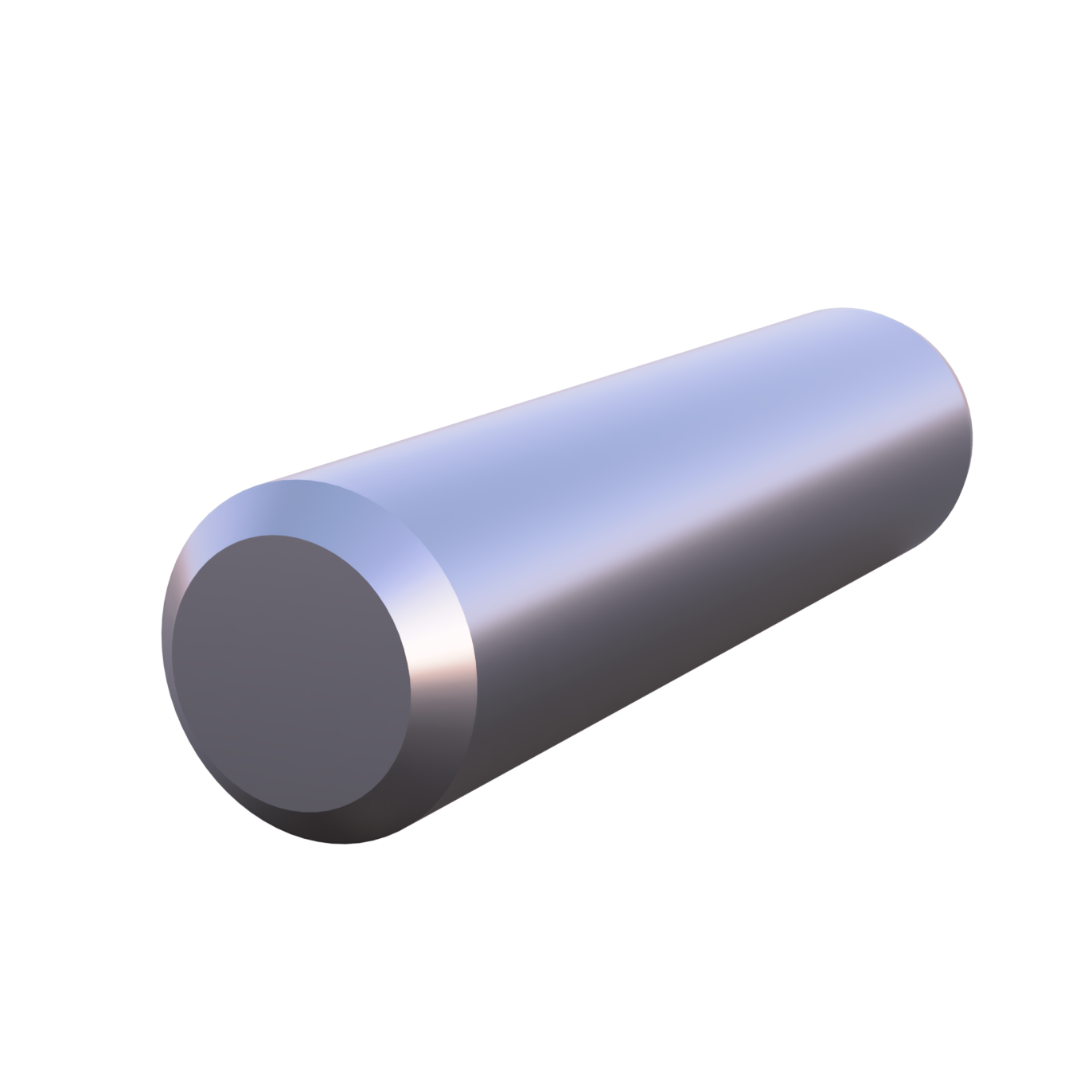

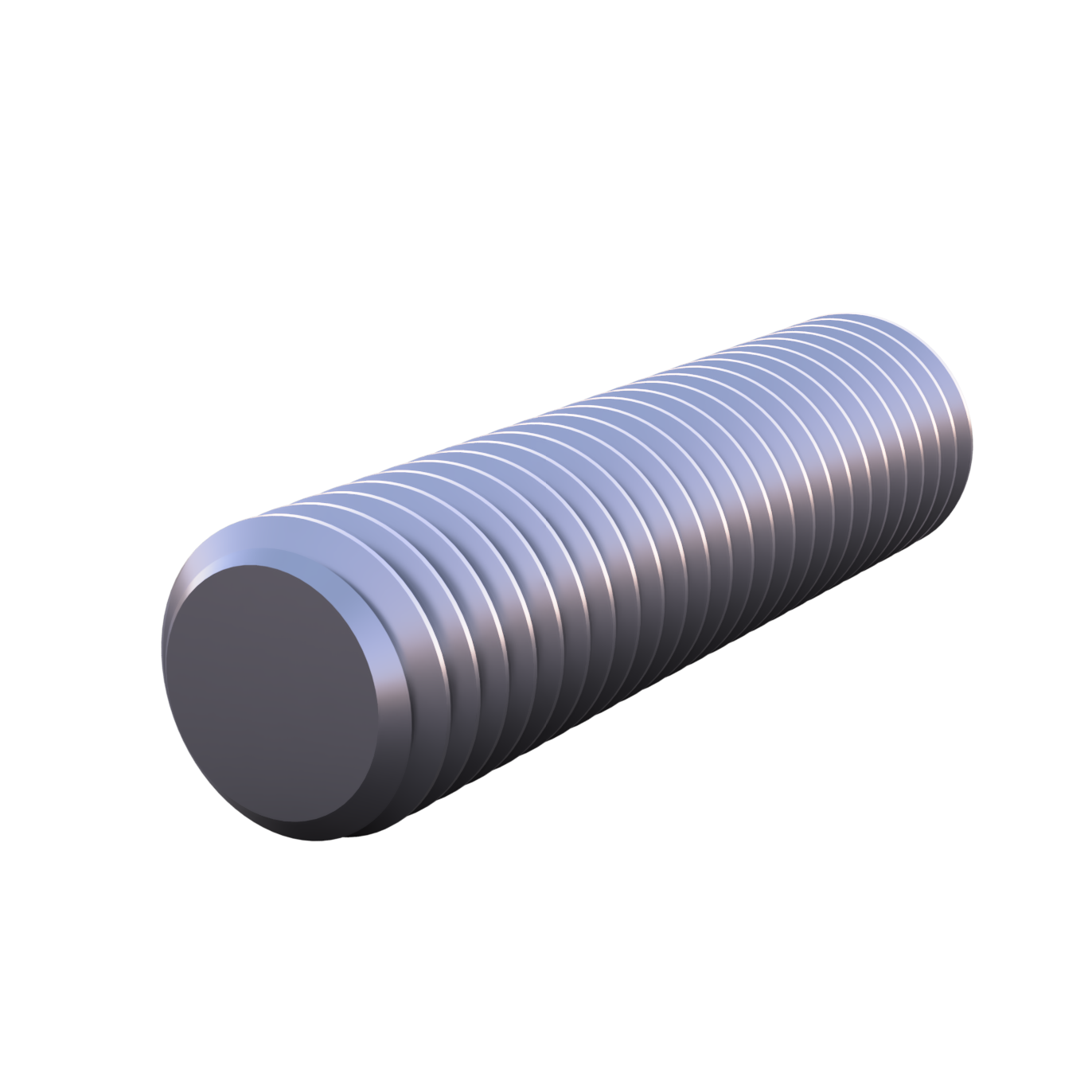

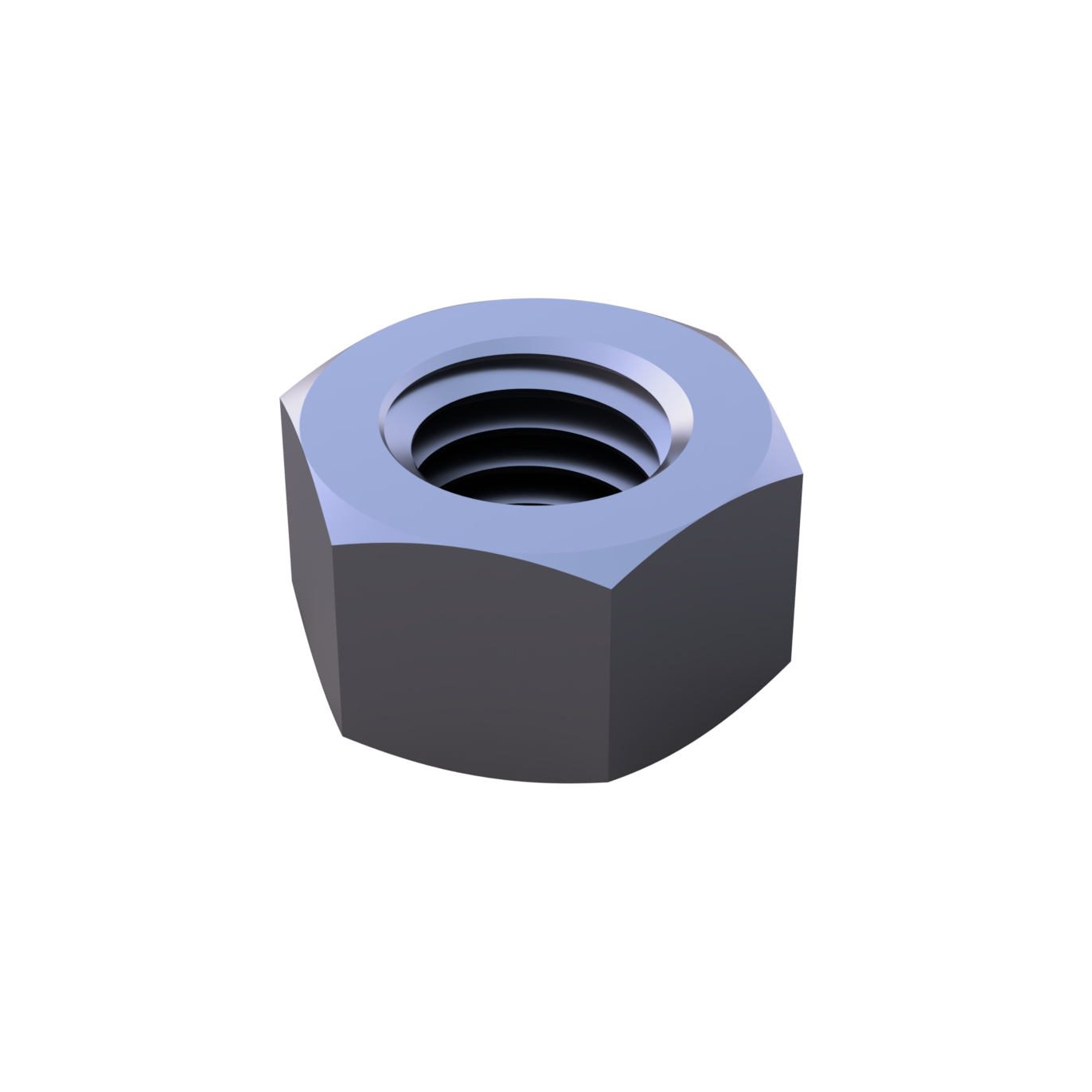

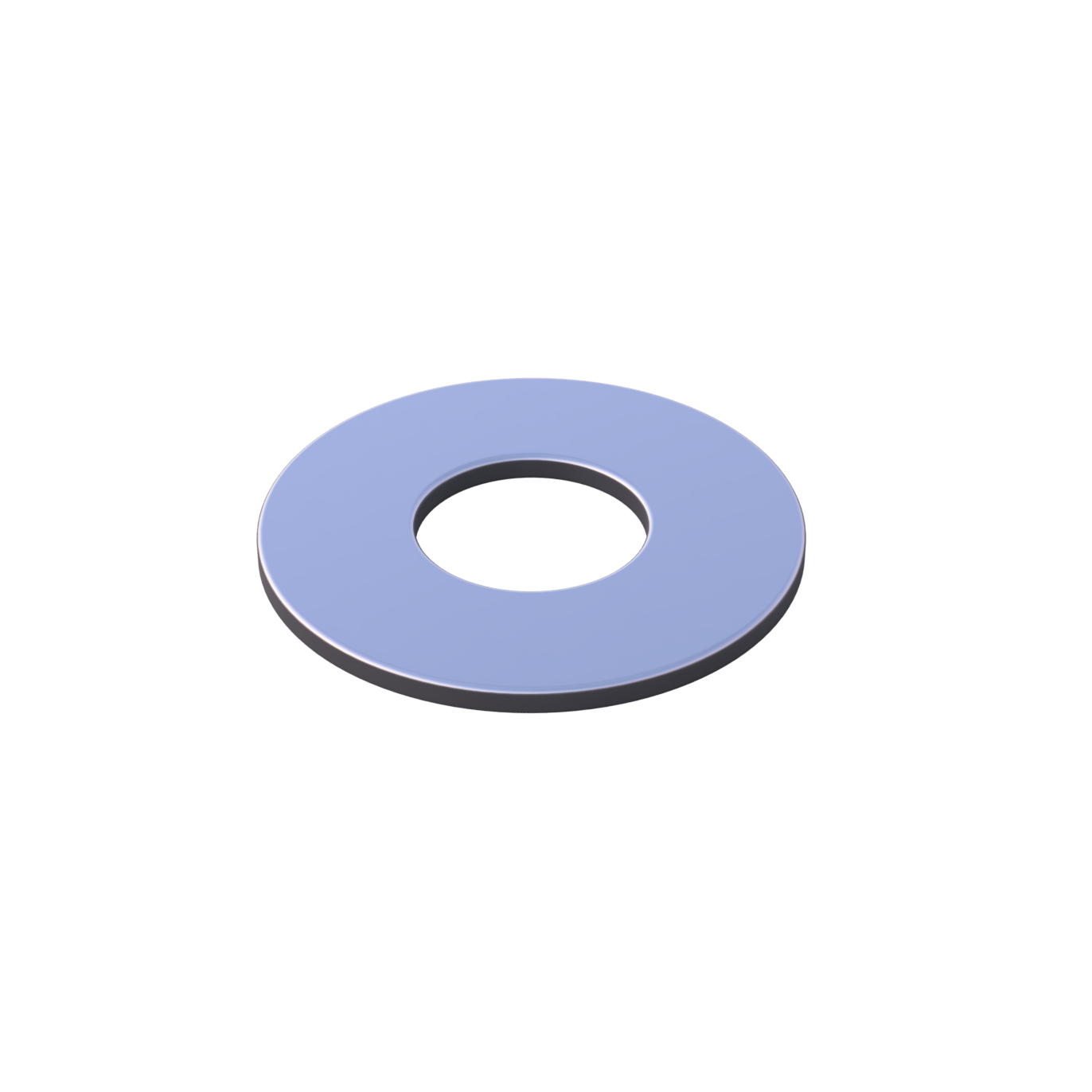

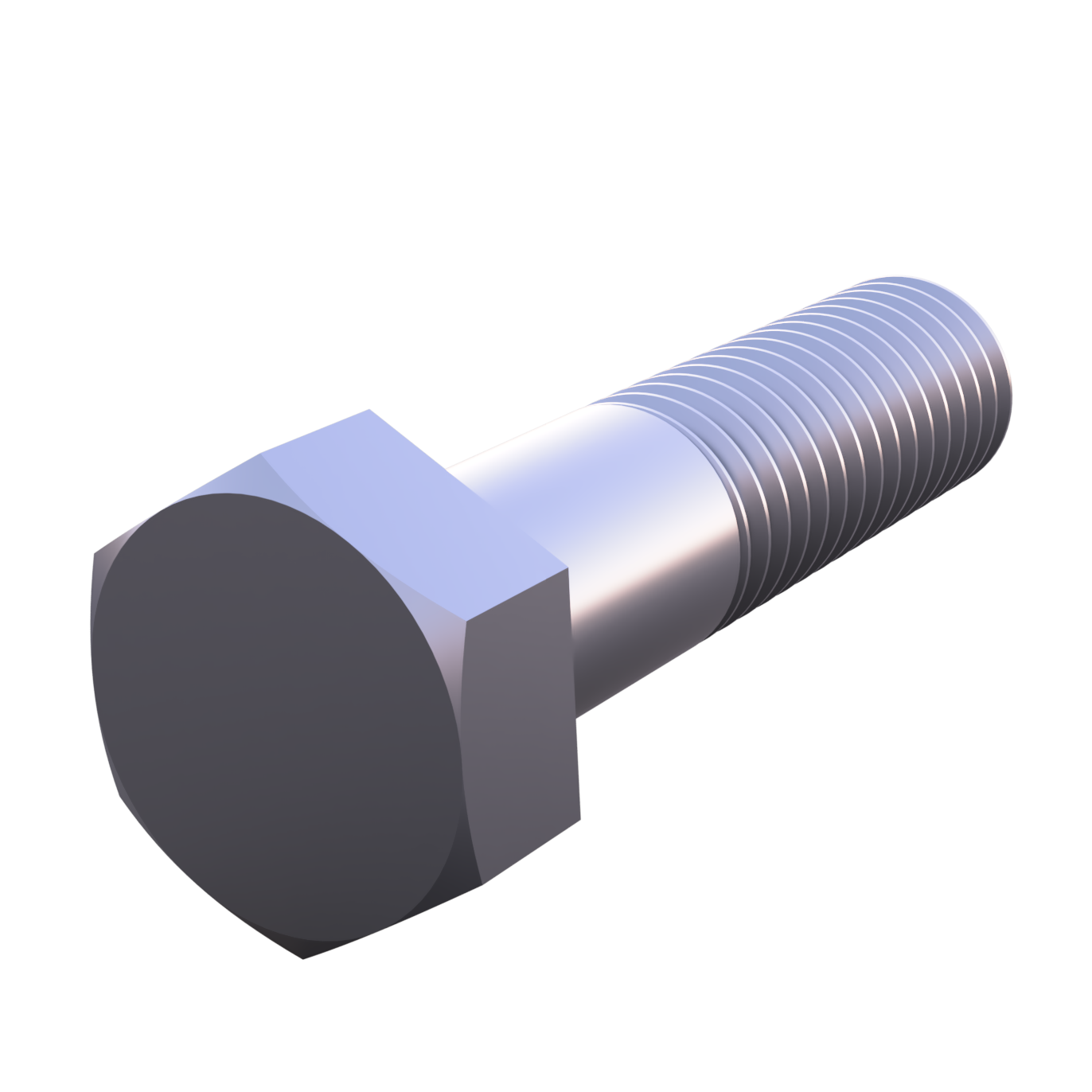

We provide a full range of Titanium Gr7 fasteners, including:



Request a Titanium Gr7 Quote From Nickel Systems Today

Nickel Systems provides quick access to Titanium Gr7 and other fasteners. Our experienced specialists have the technical know-how and material expertise to help you select the most suitable products depending on your application. Submit your quote request today for professional and friendly services.
