12-PT Flange Screws

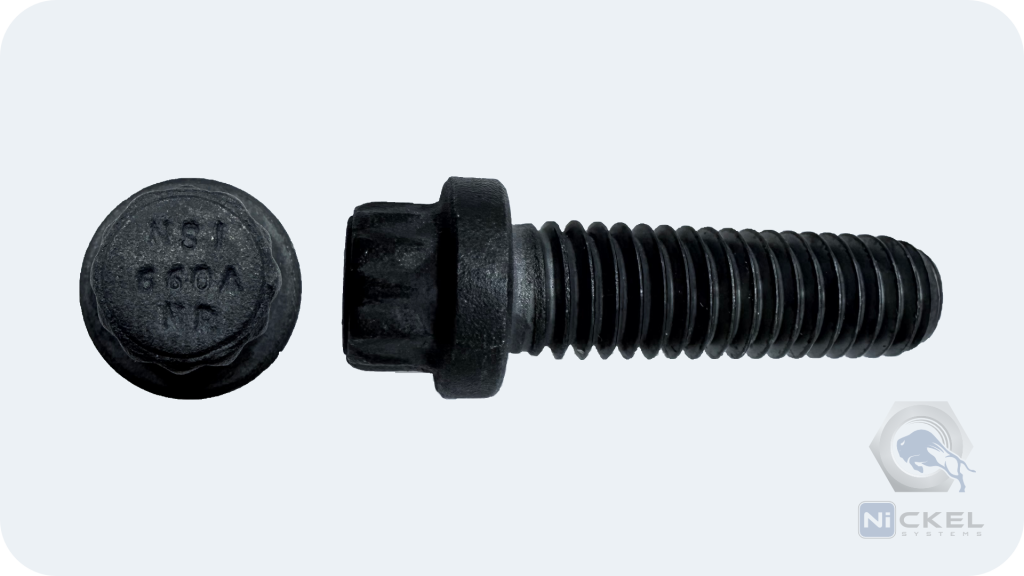

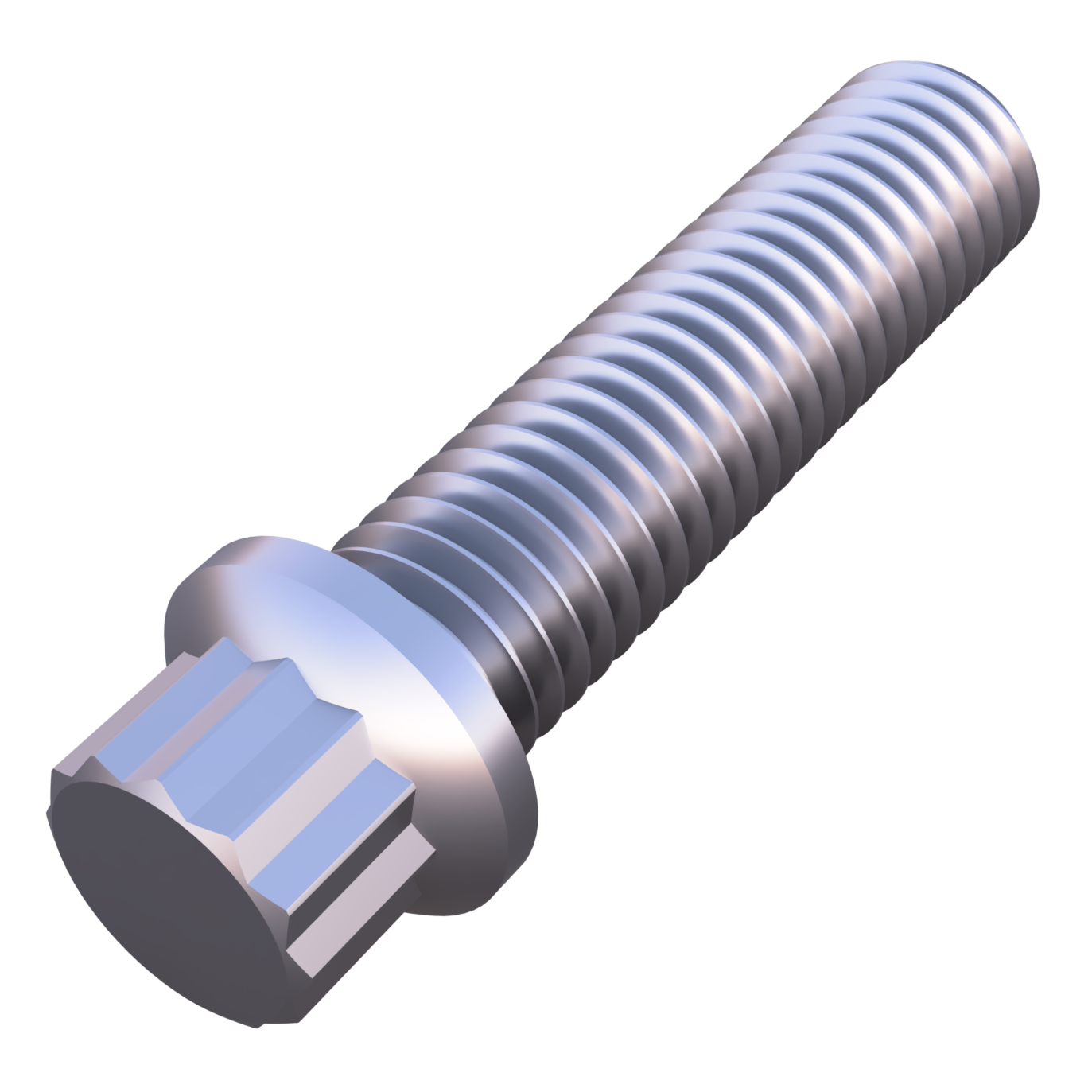

Also known as a Ferry Cap Screw, or Double Hex Head Screw. The head design on a 12-point flange screw creates 2 times the number of contact points that a hex head would have. This design helps to achieve a higher torque and the flange under the head evenly distributes surface pressure without the use of a washer.

REQUEST A QUOTE

Specifications & Technical Data

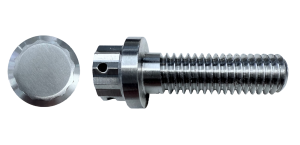

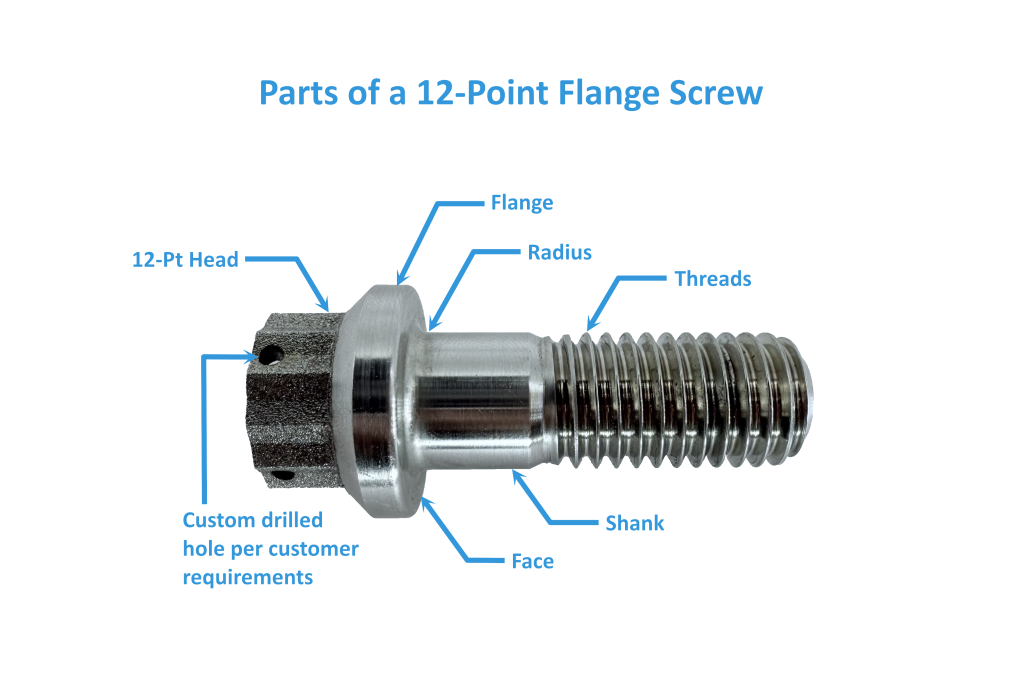

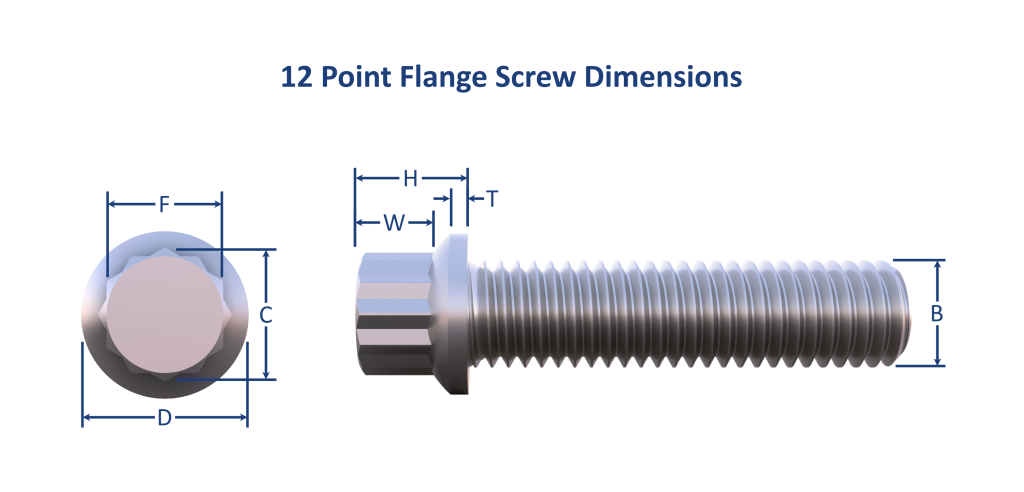

Dimensions

Nominal Size B D F C H W T A R LT Y
Body Diam. Flange Diam. Width Across Flats Width Across Corners Head Weight Wrenching Height Flange Thickness Gaging Ring Thickness Gaging Ring Diam. Thread Length Transition Thread Length
Min Max Min Max Min Min Max Min Min Max Min Max Min Basic Max
1/4 0.2435 0.375 0.365 0.252 0.244 0.278 0.26 0.15 0.058 0.0525 0.0522 0.2783 0.278 1 0.25
5/16 0.3053 0.469 0.457 0.315 0.306 0.348 0.312 0.18 0.074 0.0600 0.0597 0.3483 0.3480 1.125 0.28
3/8 0.3678 0.562 0.550 0.377 0.368 0.420 0.375 0.21 0.095 0.0711 0.0708 0.4203 0.4200 1.250 0.31
7/16 0.4294 0.656 0.642 0.438 0.429 0.489 0.438 0.26 0.109 0.0840 0.0837 0.4893 0.48980 1.375 0.36
1/2 0.4919 0.750 0.735 0.502 0.493 0.562 0.500 0.29 0.129 0.0948 0.0945 0.5623 0.5620 1.500 0.38
9/16 0.5538 0.844 0.828 0.564 0.555 0.633 0.563 0.33 0.145 0.1071 0.1068 0.6333 0.6330 1.625 0.42
5/8 0.6163 0.938 0.921 0.627 0.618 0.705 0.625 0.36 0.166 0.1179 0.1176 0.7053 0.7050 1.750 0.46
3/4 0.7406 1.125 1.107 0.752 0.743 0.847 0.750 0.44 0.200 0.1416 0.1413 0.8473 0.8470 2.000 0.50
7/8 0.8647 1.312 1.293 0.877 0.866 0.987 0.875 0.51 0.234 0.1656 0.1653 0.9873 0.9870 2.250 0.56
1 0.9886 1.500 1.479 1.003 0.991 11.130 1.000 0.60 0.268 0.1893 0.1890 1.1303 1.1300 2.500 0.62
1-1/8 1.1086 1.688 1.665 1.128 1.115 1.271 1.125 0.66 0.310 0.2109 0.2106 1.2713 1.2710 2.750 0.71
1-1/4 1.2336 1.875 1.852 1.253 1.240 1.414 1.250 0.73 0.350 0.2331 0.2328 1.4143 1.4140 3.000 0.71
1-3/8 1.3568 2.062 2.038 1.378 1.365 1.556 1.375 0.80 0.392 0.2544 0.2541 1.5563 1.5560 3.250 0.83
1-1/2 1.4818 2.250 2.224 1.503 1.489 1.697 1.500 0.87 0.433 0.2763 0.2760 1.6973 1.6970 3.500 0.83

12-PT Flange Screw Specifications

  • Standard (ASME/ANSI)
  • Metric (IFI)
    • IFI 115
