Machine Screw Hex Nuts

Machine Screw Hex Nuts

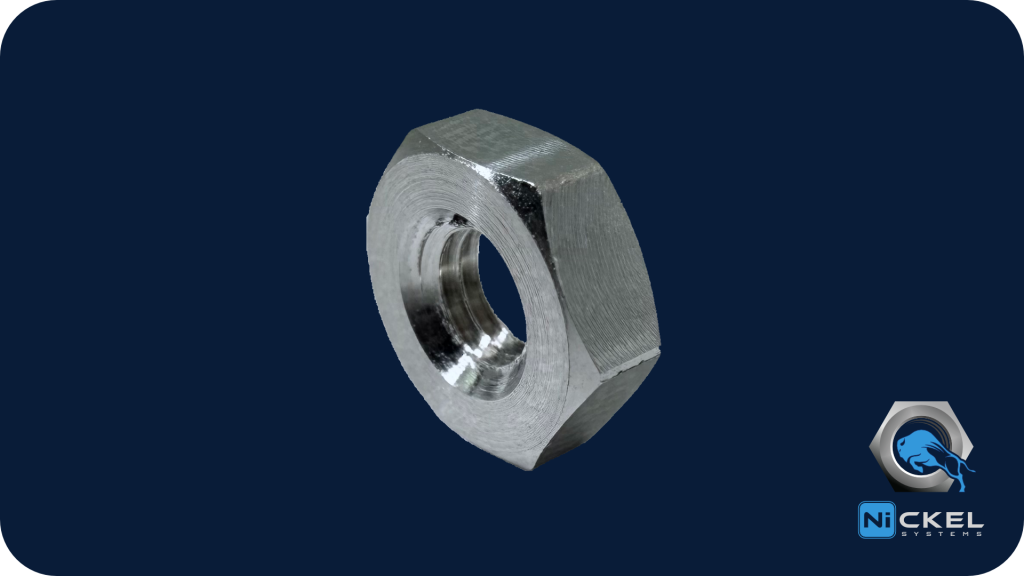

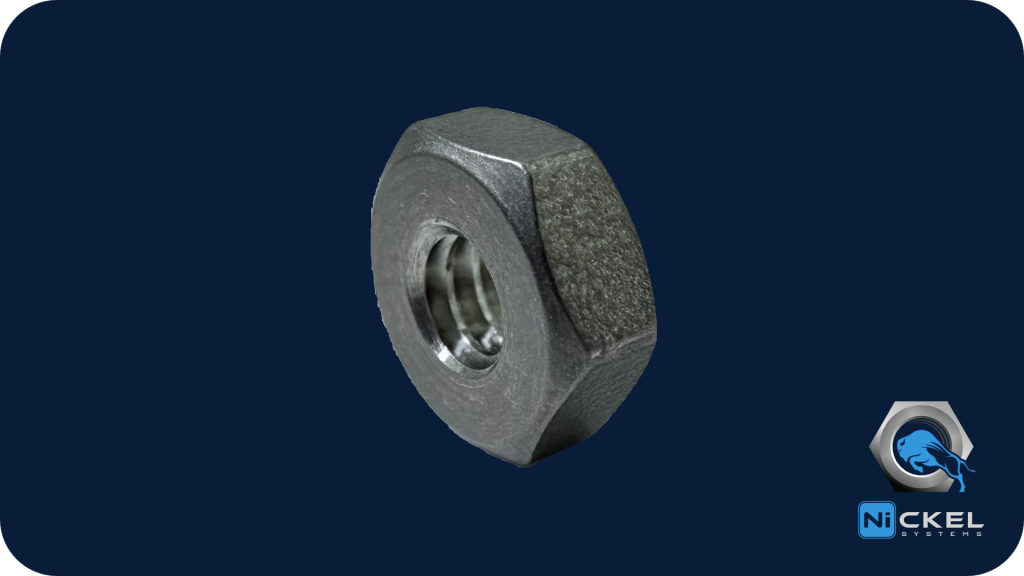

A machine screw hex nut is a six-sided internally threaded fastener that is meant to be paired with a machine screw. For this reason, machine screw hex nuts are limited to sizes ranging from #0 to #10. Due to their small size, these nuts are typically used for light-duty fastening applications.

REQUEST A QUOTE

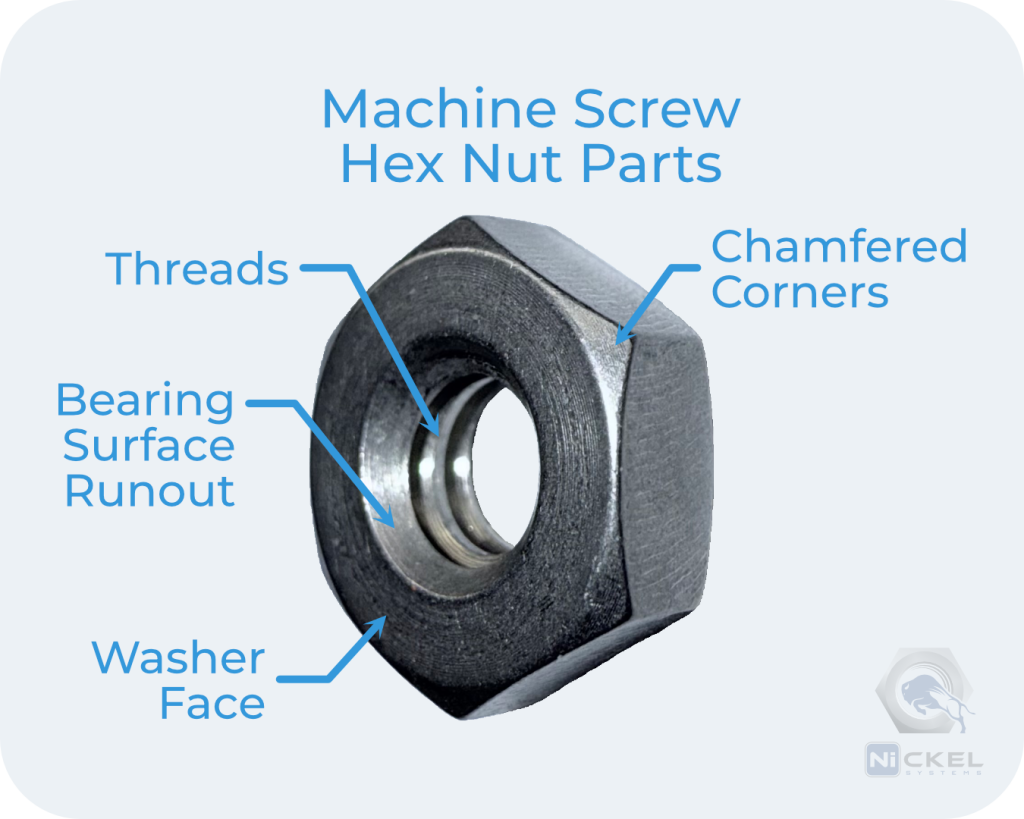

Specifications & Technical Data

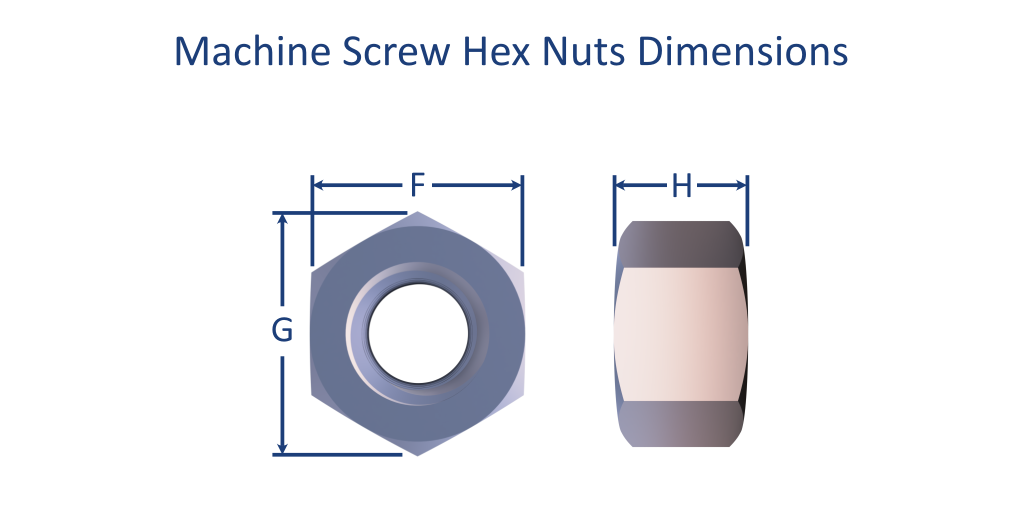

Dimensions

Nominal Size Basic Major Diameter of Thread F G1 H Bearing Surface Runout to Thread Axis, FIM
Width Across Flats Width Across Corners Thickness
Basic Min Max Min Max Min Max
0 0.060 5/32 0.150 0.156 0.171 0.180 0.043 0.050 0.005
1 0.073 5/32 0.150 0.156 0.171 0.180 0.043 0.050 0.005
2 0.086 3/16 0.180 0.188 0.205 0.217 0.057 0.066 0.006
3 0.099 3/16 0.180 0.188 0.205 0.217 0.057 0.066 0.006
4 0.112 1/4 0.241 0.250 0.275 0.289 0.087 0.098 0.009
5 0.125 5/16 0.302 0.312 0.344 0.361 0.102 0.114 0.011
6 0.138 5/16 0.302 0.312 0.344 0.361 0.102 0.114 0.011
8 0.164 11/32 0.332 0.344 0.378 0.397 0.117 0.130 0.1012
10 0.190 3/8 0.362 0.375 0.413 0.433 0.117 0.130 0.013
12 0.216 7/16 0.423 0.438 0.482 0.505 0.148 0.161 0.015
1/4 0.250 7/16 0.423 0.438 0.482 0.505 0.178 0.193 0.015
5/16 0.312 9/16 0.545 0.562 0.621 0.65 0.208 0.225 0.020
3/8 0.375 5/8 0.607 0.625 0.692 0.722 0.239 0.257 0.021



Machine Screw Hex Nut Specifications

  • Standard (ASME/ANSI)
    • ASME B18.6.3
    • ASME B18.2.2 – 2010
  • Metric (IFI)
    • DIN 934
