DOUBLE END STUDS

DOUBLE END STUDS

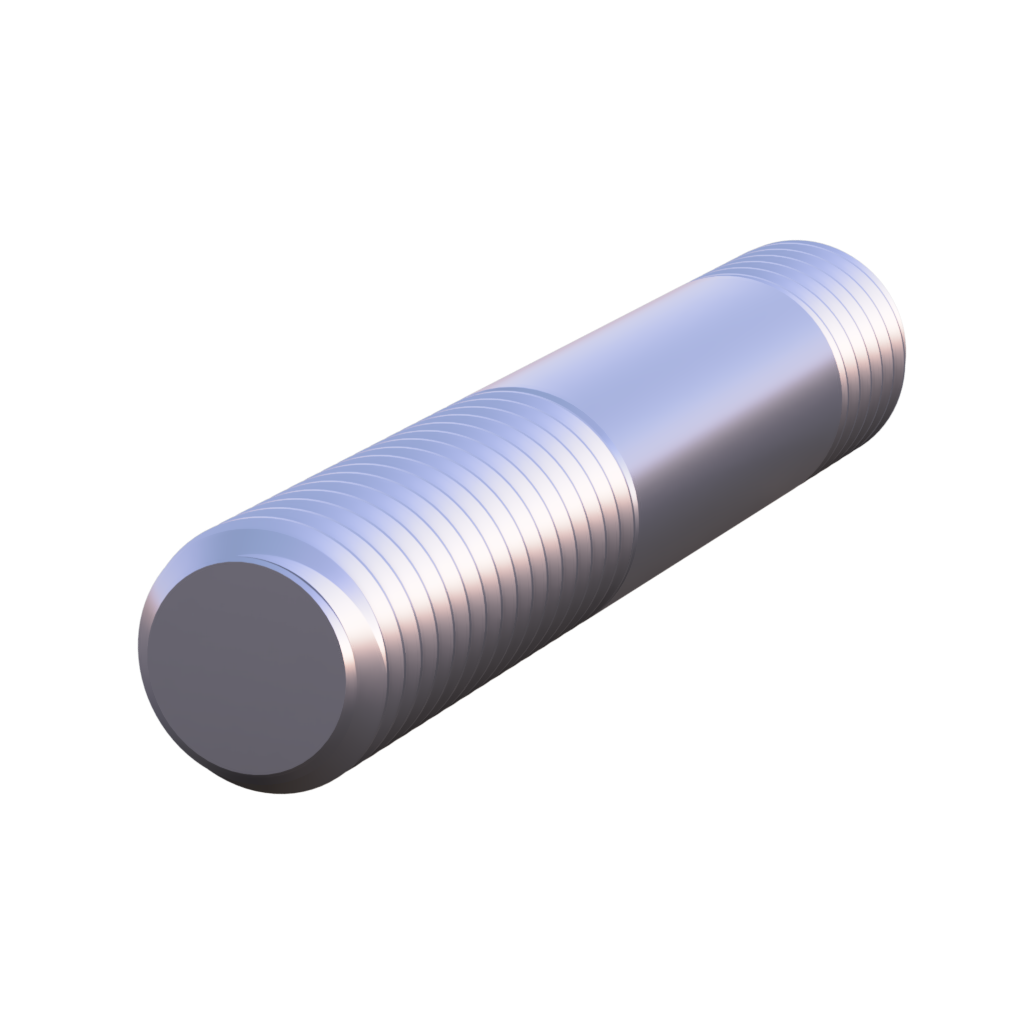

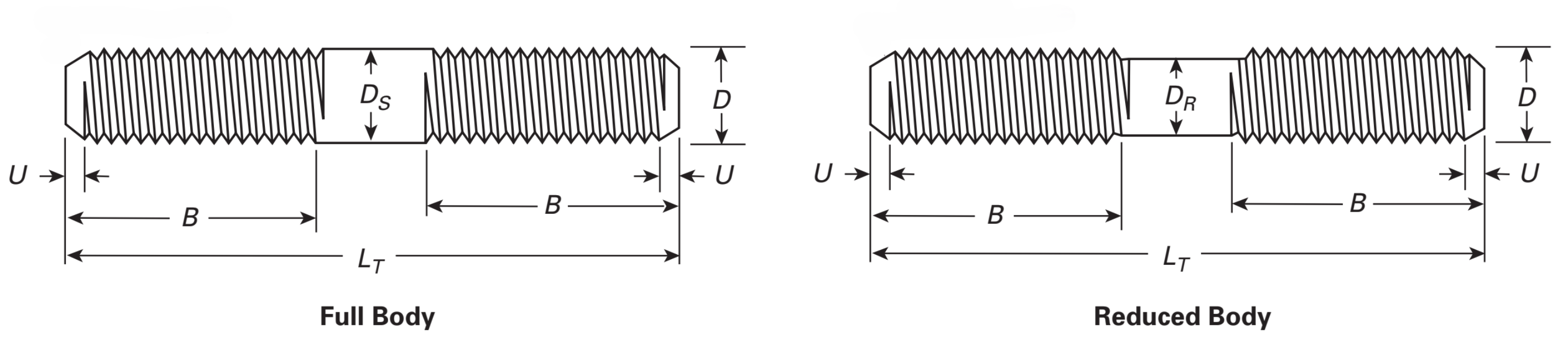

Double end studs have threads on both ends of the same thread fit class. This is usually class 2A, or if looser tolerances are allowed, commercial nut fit. The body, the area between the threads, may be either equal to the nominal major diameter of the threads or equal to the pitch diameter.

REQUEST A QUOTE

Specifications & Technical Data

Dimensions

Nominal Size Diameter, D Nut End Minimum Full Thread Length, Bmin Umax = 2 Thread Pitches
L ≤ 10 10 < L ≤ 16 L > 16 UNC Threads UNF Threads 8UN Threads
1/4 0.2500 0.750 1.000 1.500 0.100 0.071 —
5/16 0.3125 0.875 1.125 1.625 0.111 0.083 —
3/8 0.3750 1.000 1.250 1.750 0.125 0.083 —
7/16 0.4375 1.125 1.375 1.875 0.143 0.100 —
1/2 0.5000 1.250 1.500 2.000 0.154 0.100 —
9/16 0.5625 1.375 1.625 2.125 0.167 0.111 —
5/8 0.6250 1.500 1.750 2.250 0.182 0.111 —
3/4 0.7500 1.750 2.000 2.500 0.200 0.125 —
7/8 0.8750 2.000 2.250 2.750 0.222 0.143 —
1 1.0000 2.250 2.500 3.000 0.250 0.167 —
1 1/8 1.1250 2.500 2.750 3.250 0.286 0.167 0.250
1 1/4 1.2500 2.750 3.000 3.500 0.286 0.167 0.250
1 3/8 1.3750 3.000 3.250 3.750 0.333 0.167 0.250
1 1/2 1.5000 3.250 3.500 4.000 0.333 0.167 0.250
1 5/8 1.6250 3.500 3.750 4.250 — — 0.250
1 3/4 0.1750 3.750 4.000 4.500 0.400 — 0.250
1 7/8 1.8750 4.000 4.250 4.750 — — 0.250
2 2.0000 4.250 4.500 5.000 0.444 — 0.250
2 1/4 2.2500 4.750 5.000 5.500 0.444 — 0.250
2 1/2 2.5000 5.250 5.500 6.000 0.500 — 0.250
2 3/4 2.7500 5.750 6.000 6.500 0.500 — 0.250
3 3.0000 — 6.500 7.000 0.500 — 0.250
3 1/4 3.2500 — 7.000 7.500 0.500 — 0.250
3 1/2 3.5000 — 7.500 8.000 0.500 — 0.250
3 3/4 3.7500 — 8.000 8.500 0.500 — 0.250
4 4.0000 — 8.500 9.000 0.500 — 0.250

Double End Studs Specifications

  • STANDARD (ASME/ANSI)
  • METRIC (IFI)
Three Blue Hexagons Are Lined Up On A White Background

In-stock

DOUBLE END STUDS Available Materials

Browse all Materials

Check out our Double End Sample Products

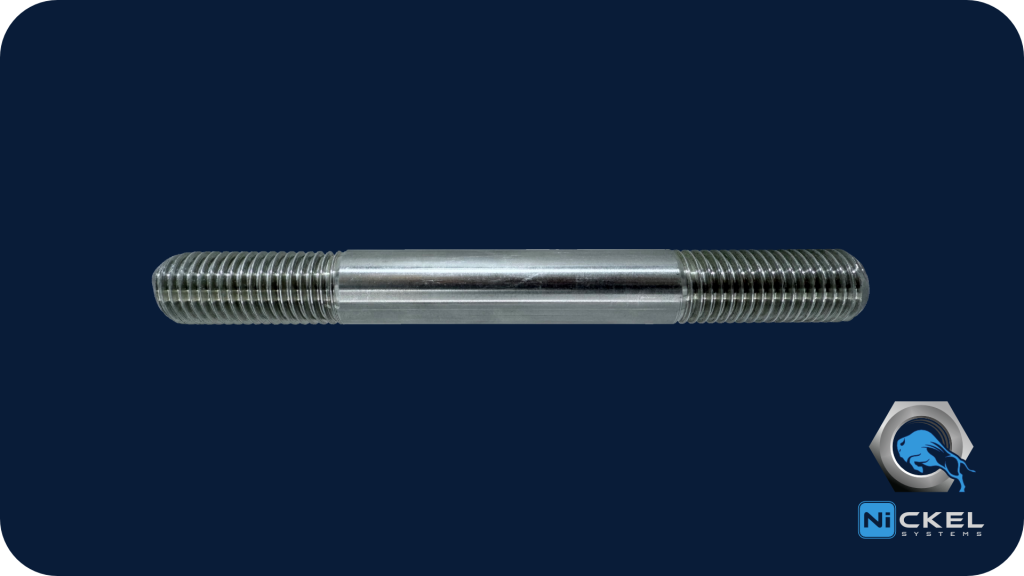

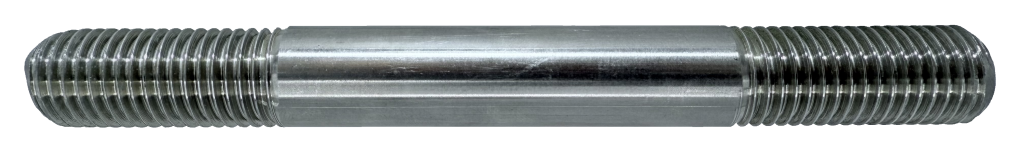

Double End 7/8″ Diameter C276 Hastelloy Material
